Combi Pros
Combi Pros

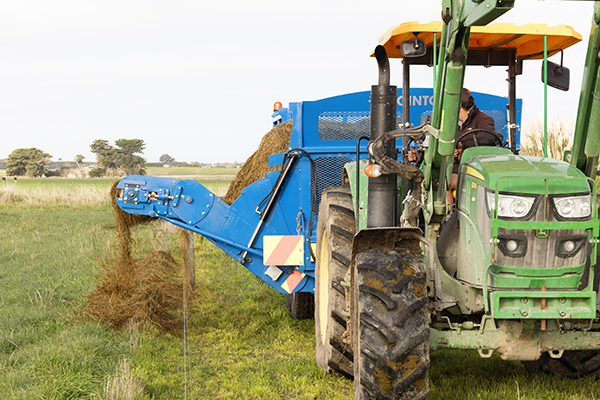

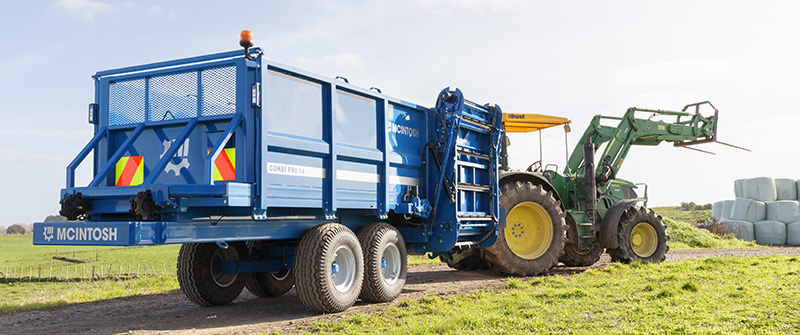

The McIntosh Combi Pro roller chain conveyor can feed over fences or high sided feed troughs successfully.

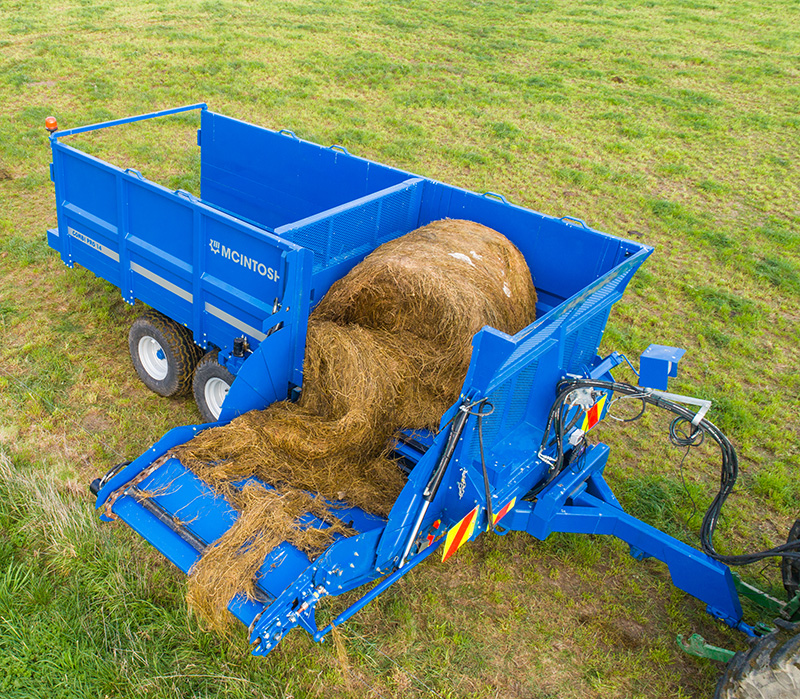

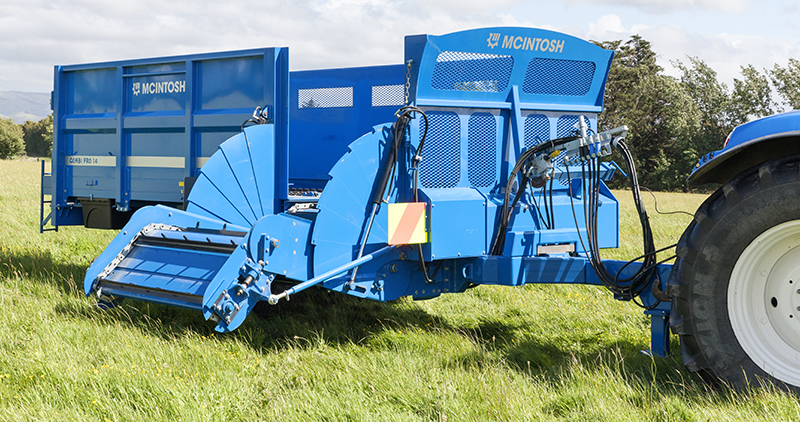

The McIntosh Combi Pro is a truly versatile feeding solution built to handle everything from bulk silage to square bales, round bales, fodder beet, and more. The Combi Pro is designed to deliver reliable, efficient feeding every time.
The Combi Pro’s dual chains pull the back door forward evenly preventing twisting and eliminating the need for a hydraulic ram. The floor has been designed with no central floor gap that ramdriven systems have, which means less feed loss, product build-up and maintenance.
| Model | Cubic Capacity (m³) |
Overall Width (mm) |
Overall Length (mm) |
Loading Height Bin (mm) |
Tyre Size | Weight (kg) |
Internal Bin
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRO 14.8 | 14.8 | 2680 | 8225 | 2545 | 15/70-18 | 6040 | 5380 | 2100 | 1300 | |||
| PRO 17.5 | 17.5 | 3090 | 8225 | 2600 | 500/45-22.5 | 6450 | 5380 | 2500 | 1300 | |||
| PRO 18 | 18 | 2680 | 9425 | 2585 | 385/65-22.5 | 6480 | 6580 | 2100 | 1300 | |||
| PRO 21.3 | 21.3 | 3090 | 9425 | 2760 | 500/60-22.5 | 7020 | 6580 | 2500 | 1300 | |||

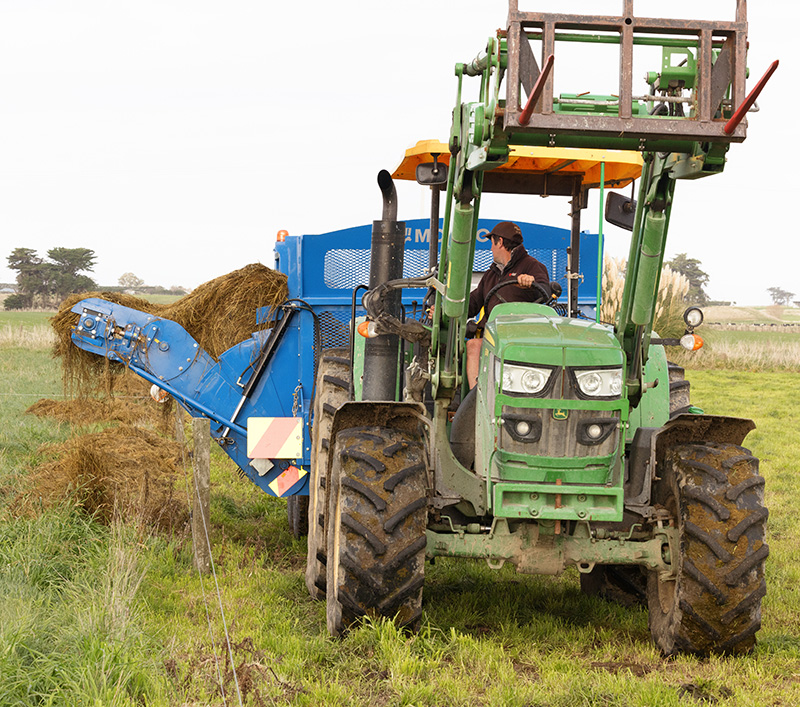

What really sets the Combi Pro apart is the optional “Auto Tip,” a patent-pending second-stage elevator cross conveyor (Australian Patent Application No. 2023903709). This industry-first innovation gives you precise control over feed placement, whether it’s over a fence line or directly into a trough. With a 75-degree elevator angle, feed can be dropped closer to the ground, creating a narrow, consistent flow. This helps to reduce waste, save time, and improve on-farm efficiency and cost-effectiveness. It’s a real game changer, especially in snowy or muddy conditions.

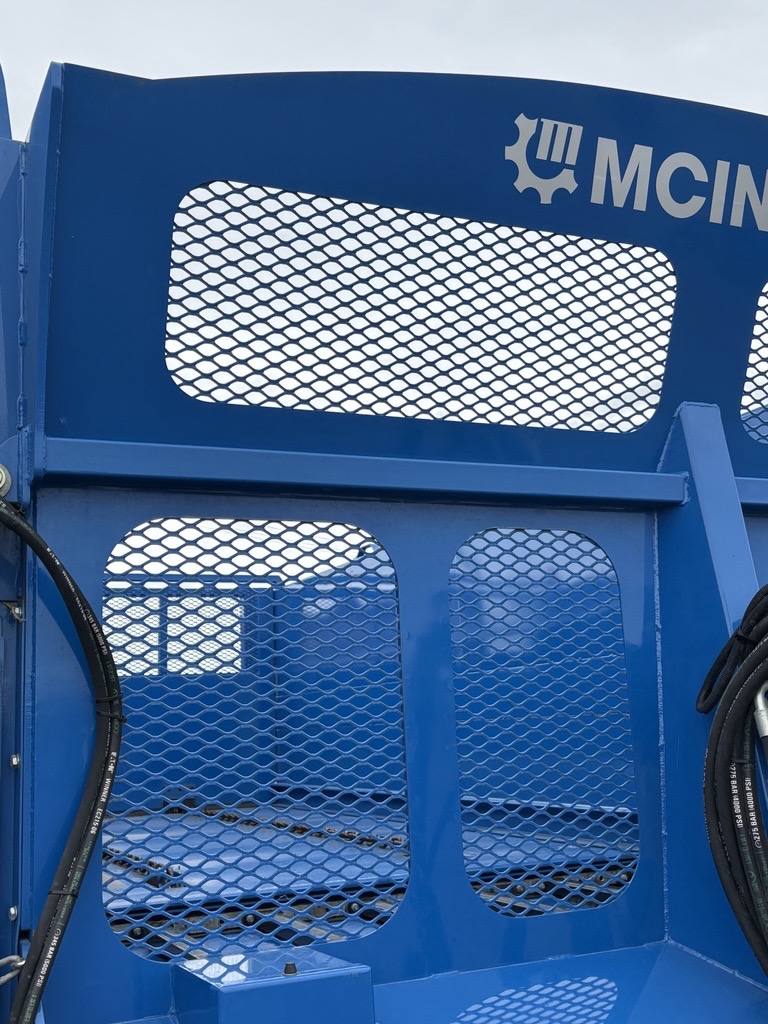

Mesh for visibility when loading especially bales

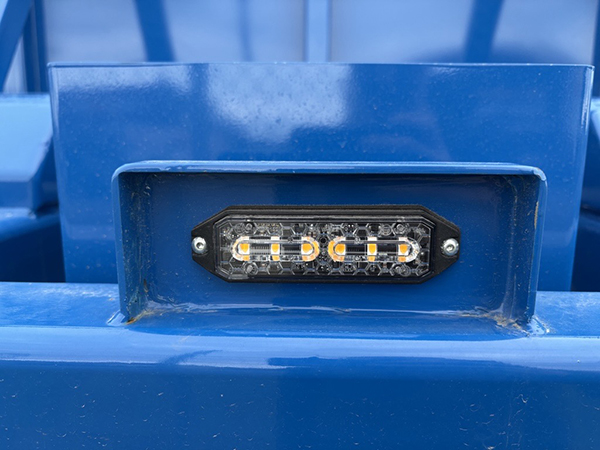

LED lights and rear flashing light

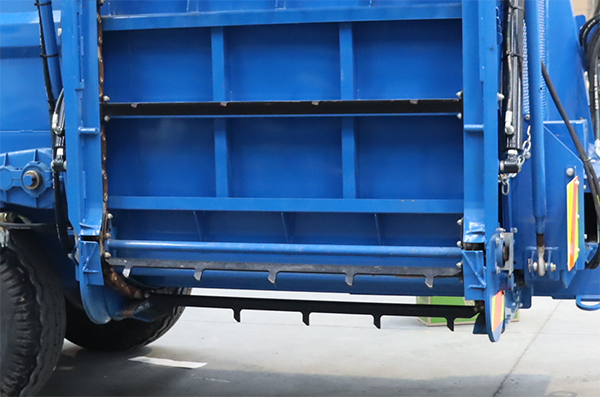

Aggressive teeth to assist with bale ripping
- Heavy duty 13mm floor chains
- 5mm thick medium tensile steel floor
- Self-tensioning elevator roller chain
- 8-tooth sprocket for longer life and better drive-in elevator
- Elevator on 2 ram system making the elevator far more even and stronger than a single ram system.
- 3” 12,000lb – Zinc plated roller chains
- Hazard panels
- Bronze bearings
- 1500mm wide roller chain cross conveyor
- Narrow drawbar for better turning circle
- Rear door – 2 heavy duty chains pull the back door forward evenly

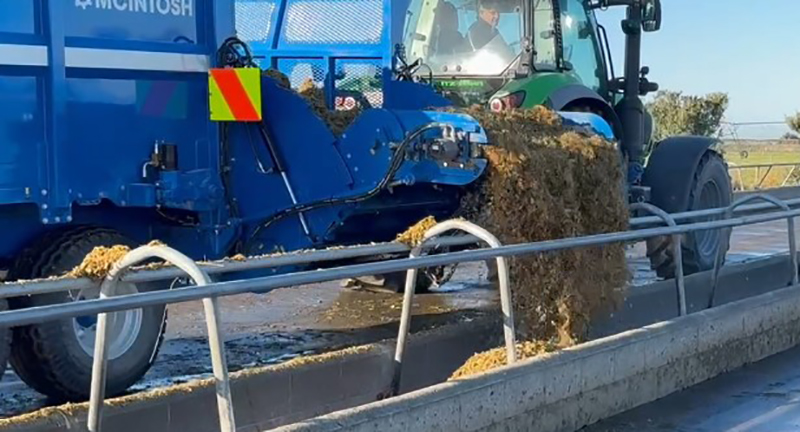

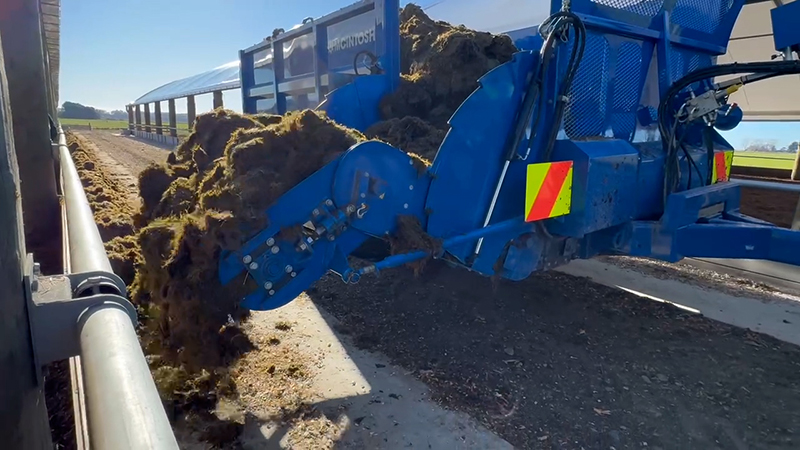

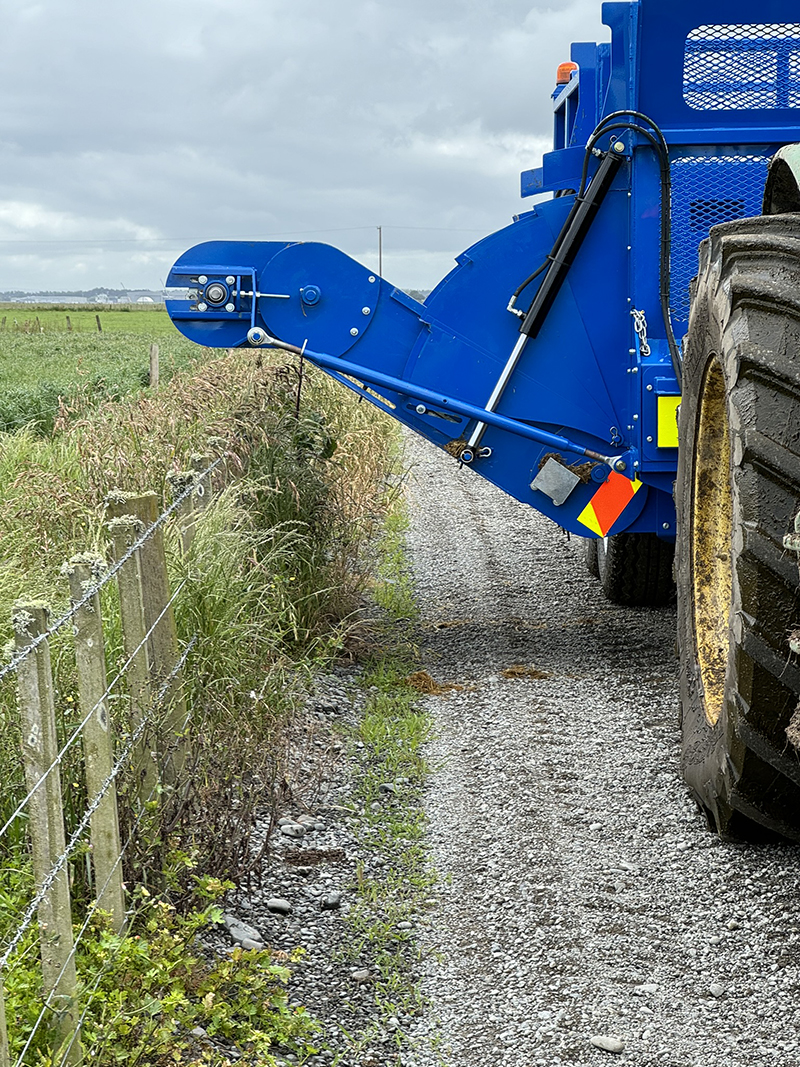

Auto Tip for feeding over fences or directly into troughs
- Load cells with screen on Combi ensures you always know the load weight
- Brakes on 2 or 4 wheels
- Load cells with full Bluetooth system for tablet or phone
