Double Bale Feeders
Double Bale Feeders

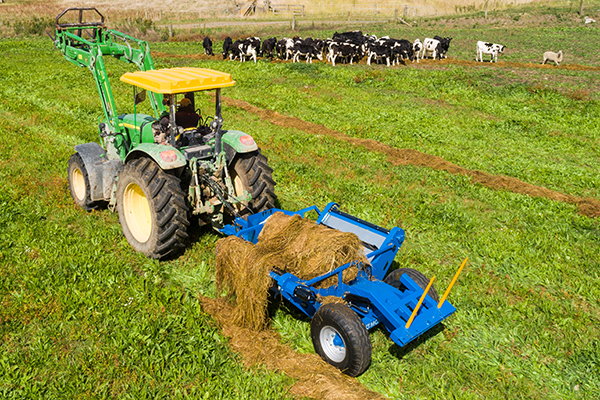

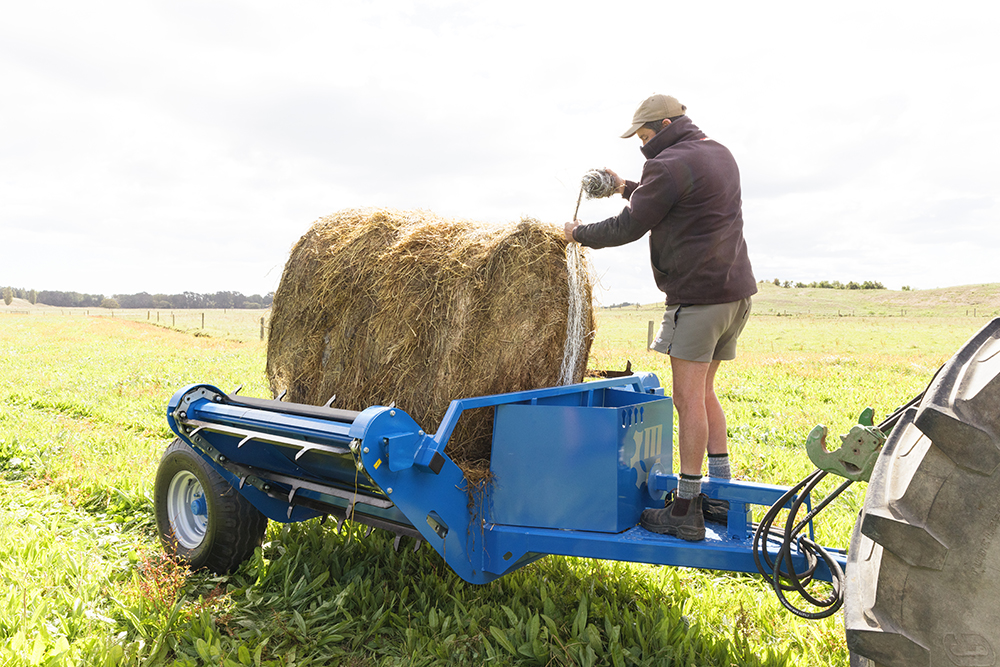

Engineered to feed with confidence, the McIntosh Double Bale Feeder is built for farmers who demand strength, stability, and feeding efficiency they can rely on.
Proven over years of reliable performance, this heavy-duty machine is designed to perform in all conditions. The cradle sits between the chassis rails rather than on top, lowering the centre of gravity for safer operation on slopes and uneven ground. A wider cradle reduces the risk of running over feed, especially in muddy or windy conditions.

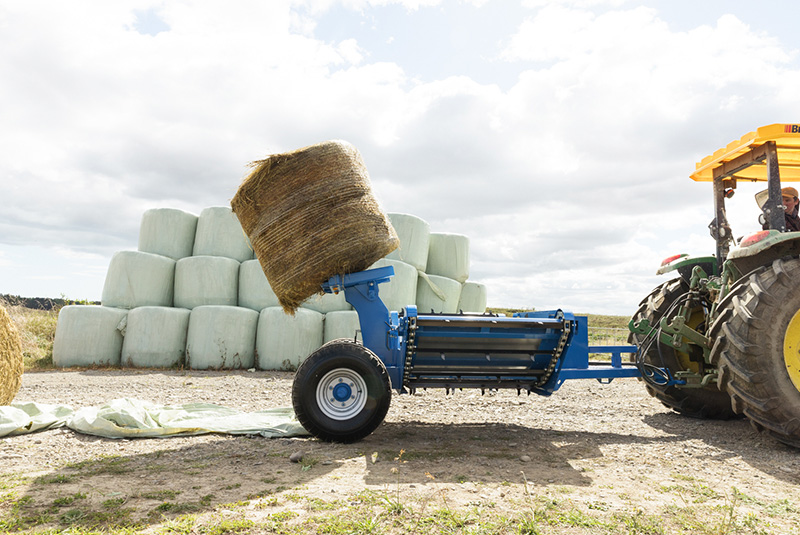

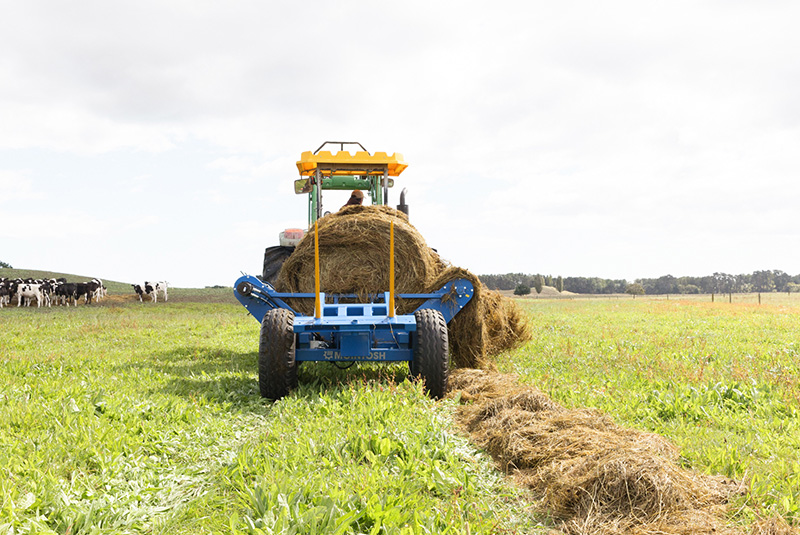

Aggression pins and the short cradle design work together to tear apart tight or mouldy bales more effectively, providing a consistent, even feed-out. The double-ram loading arm lowers bales gently into place, protecting both the feeder and the bale from sudden impact.
| Model | Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
|---|---|---|---|---|
| DOUBLE BALE FEEDER | 3750 | 2300 | 1100 | 1100 |
NB: All weights and measurements are approximate and dependent on specifications and may change without notice.
3 axle widths for stability in varying conditions

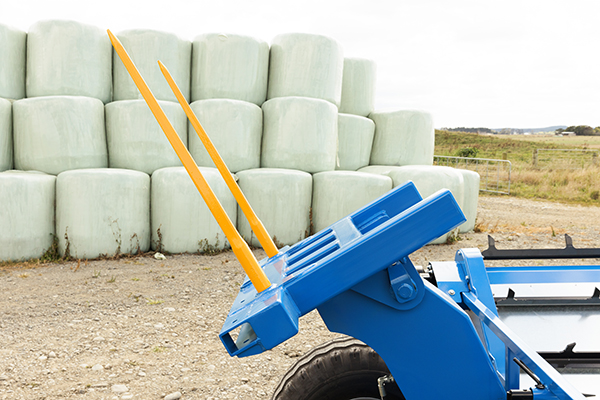

2 or 3 adjustable forks for different bales

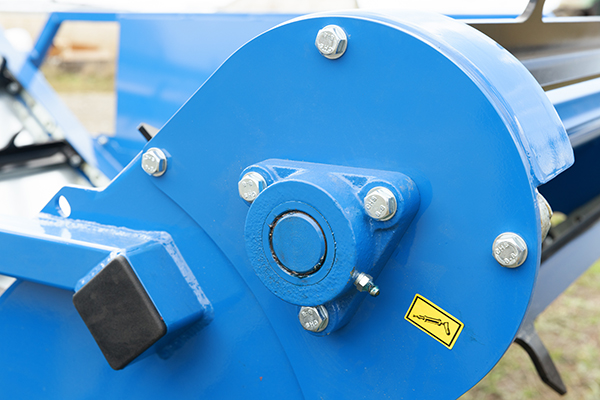

Bronze bushes on drive shaft

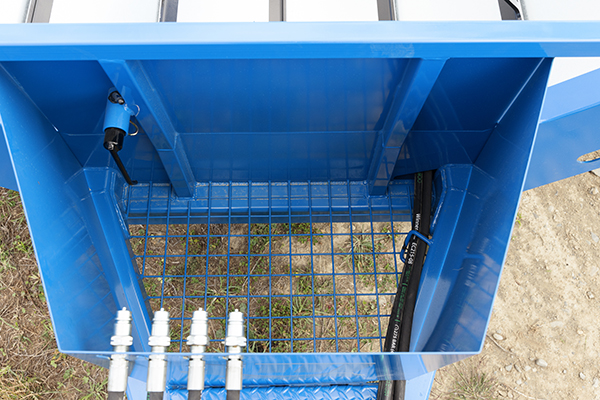

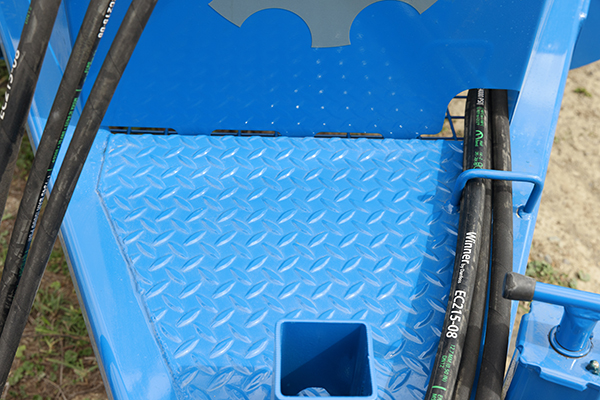

Checker – plate step and open bin for external storage

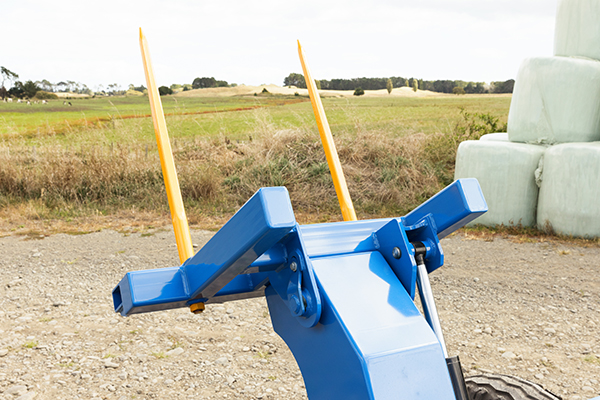

Strong lifting arm supports frame in transit

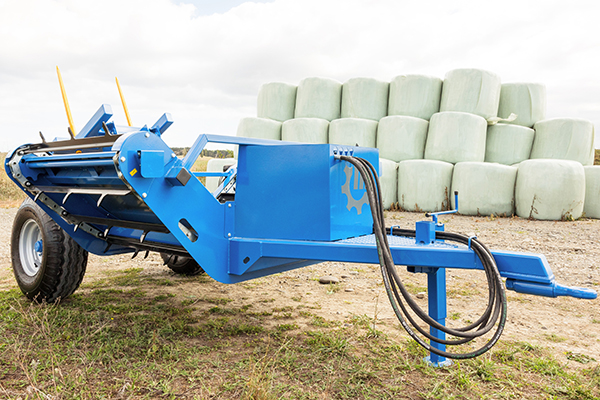

Low centre of gravity

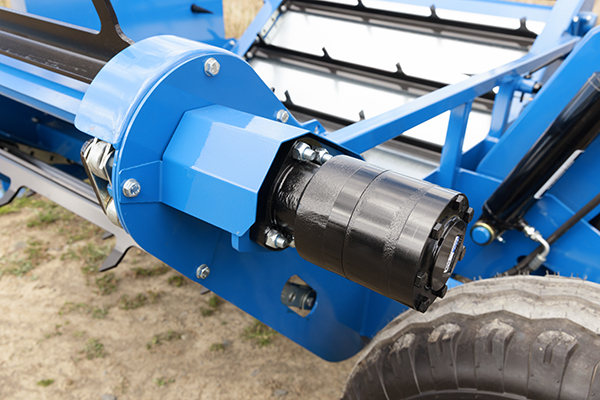

Large heavy-duty 3000 PSI motor with 1¼ drive shaft and large key

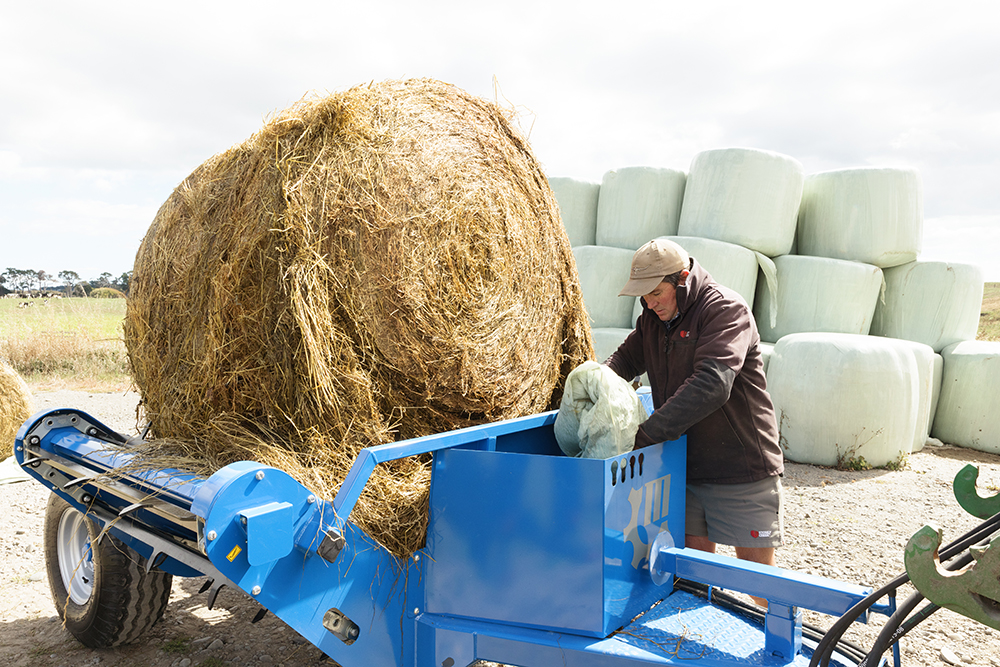

Net and plastic wrap storage
315 mm tyre clearance prevents feed run-over

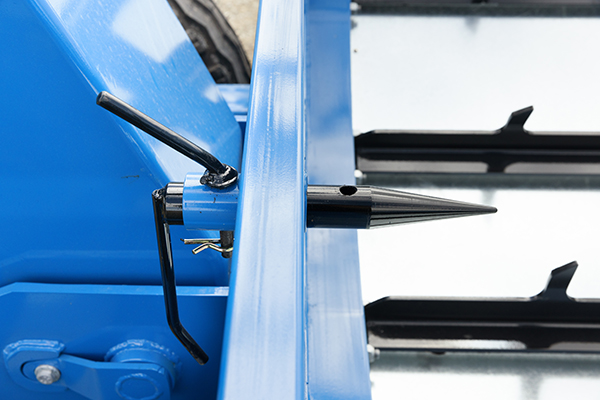

McIntosh Aggression pin
Heavy-duty 3” 12,000lb roller chain
8 tooth sprockets for extended chain life

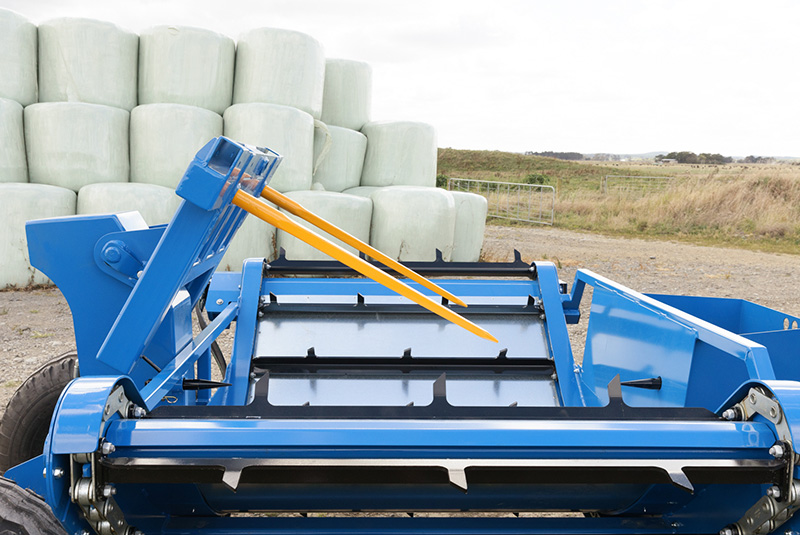

3 & 4 tooth slats grip tough uneven bales
Square bale attachment RHS frame & tines for cradle

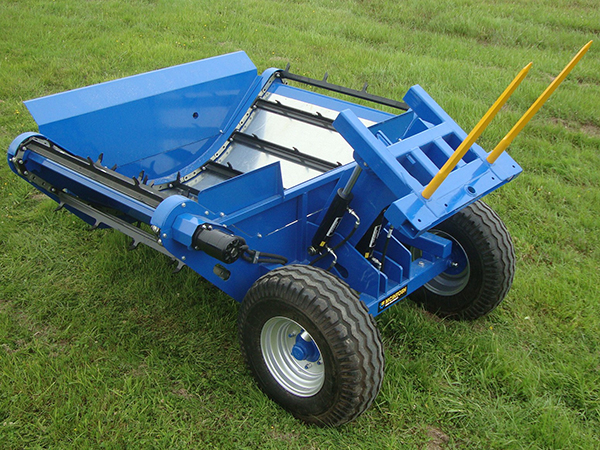

Front or back panel

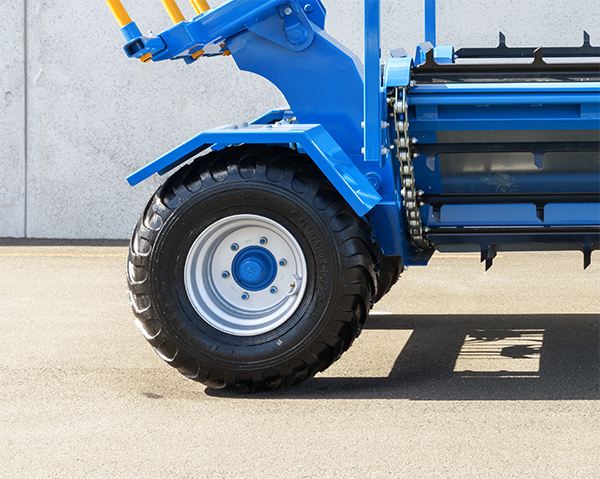

Mudguards and Tyres – tractor tread 400/60–15.5

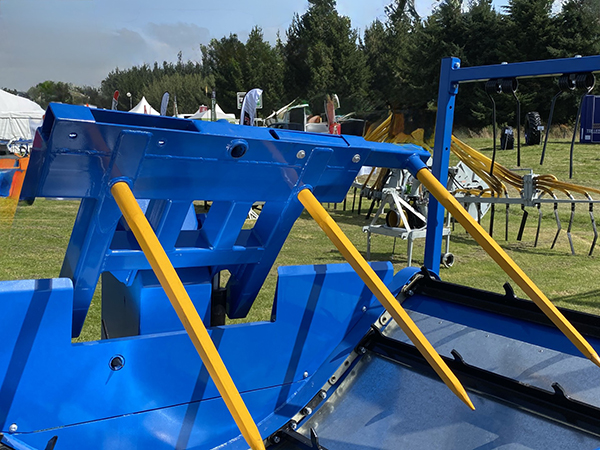

3rd tine on loading forks
