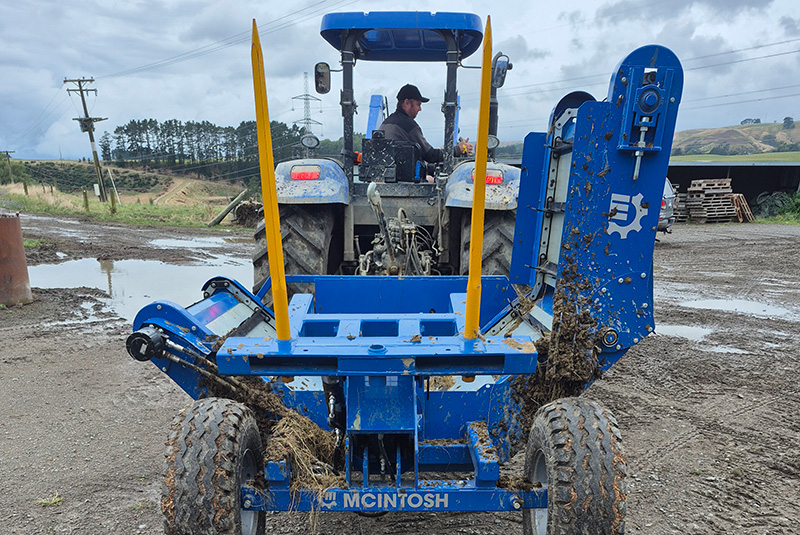

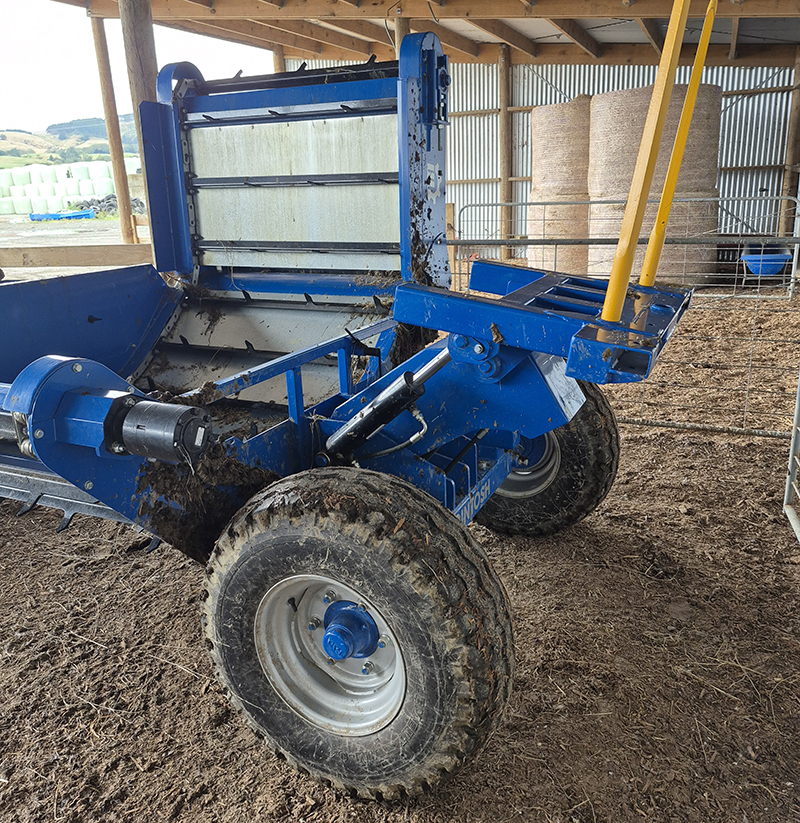

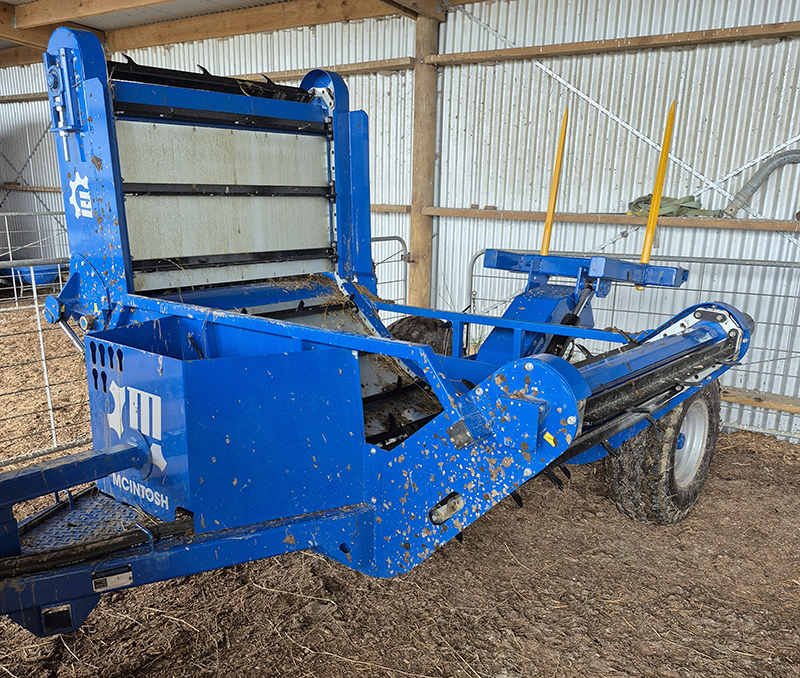

Engineered to feed with confidence, the McIntosh Double Bale Feeder is built for farmers who demand strength, stability, and feeding efficiency they can rely on.
Proven over years of reliable performance, this heavy-duty machine is designed to perform in all conditions. The cradle sits between the chassis rails rather than on top, lowering the centre of gravity for safer operation on slopes and uneven ground. A wider cradle reduces the risk of running over feed, especially in muddy or windy conditions.
Aggression pins and the short cradle design work together to tear apart tight or mouldy bales more effectively, providing a consistent, even feed-out. The double-ram loading arm lowers bales gently into place, protecting both the feeder and the bale from sudden impact.
| Model | Length (mm) |
Width (mm) |
Height (mm) |
Width – Arm Raised (mm) |
Width from Centre – Arm Extended (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| DOUBLE BALE FEEDER | 3750 | 2300 | 1100 | 2420 | 2120 | 1100 |
| DOUBLE TROUGH BALE FEEDER | 3750 | 2300 | 1200 | 1100 | 2050 | 1165 |
NB: All weights and measurements are approximate and dependent on specifications and may change without notice.

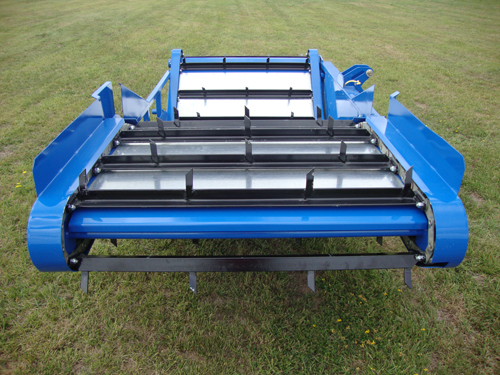

Extended sides on the extension
The trough arm extends to 2040mm
Checker-plate step and open bin for external storage

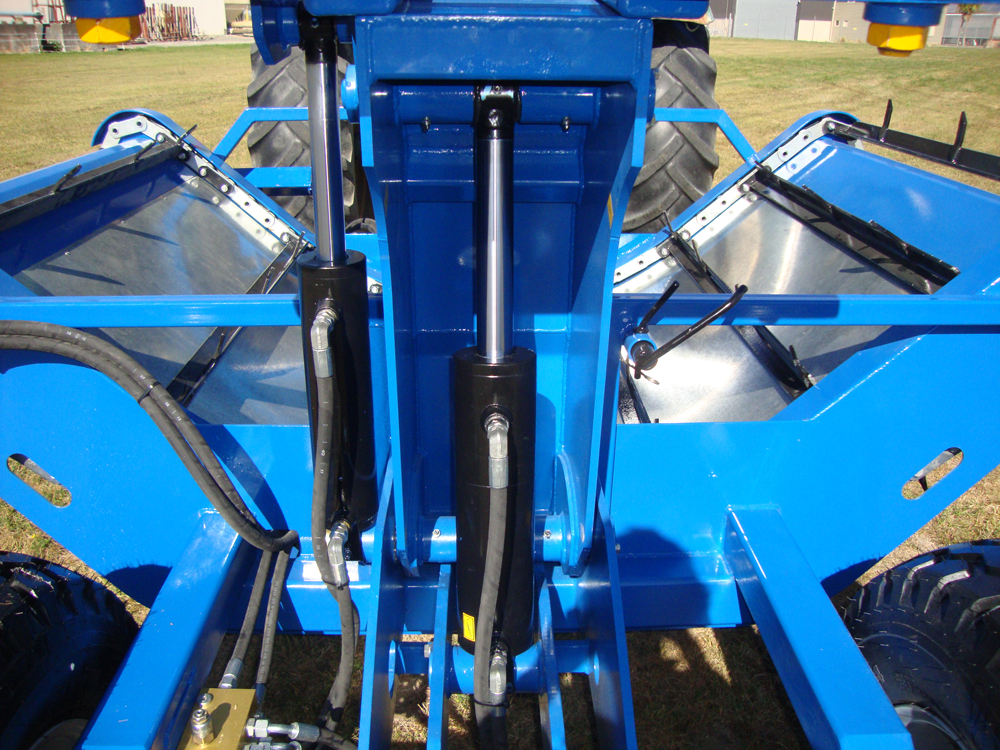

Double ram loading system lowers the bale gently
Strong lifting arm supports frame in transit
3 axle widths for stability in varying conditions
Net and plastic wrap storage
McIntosh Aggression pin

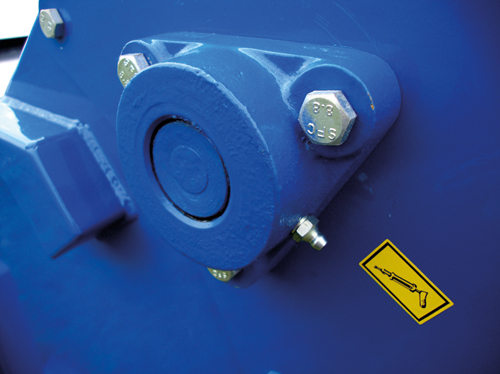

Bronze bushes on drive shaft
Heavy-duty 3” 12,000lb roller chain
3000 PSI motor with 1¼ drive shaft and large key

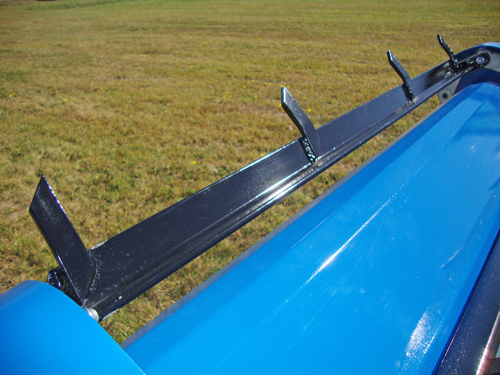

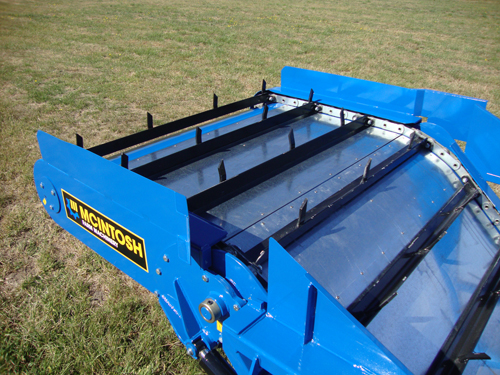

8mm angled slats for improved bale ripping

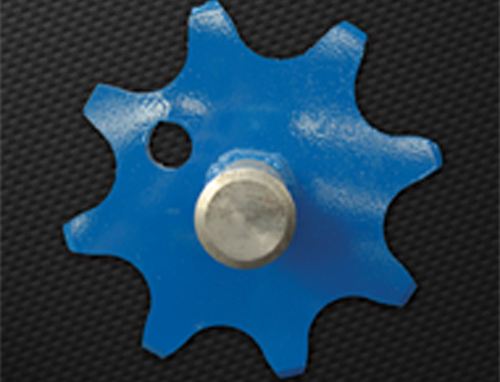

8 tooth sprockets for extended chain life
315 mm tyre clearance prevents feed run-over
2 or 3 adjustable forks for different bales

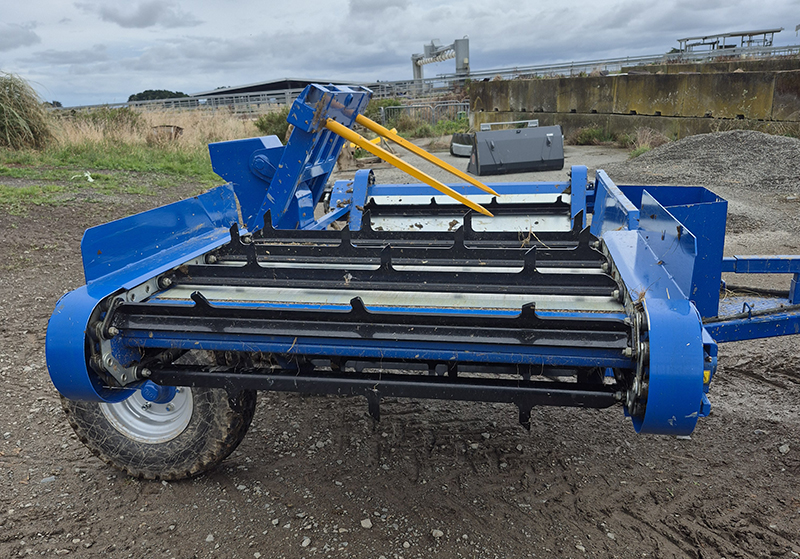

3 and 4 tooth slats grip tough, uneven bales
3rd tine on loading forks
Mudguards
Front and back panel
Tyres – tractor tread 11.5/80-15.3
Tyres – tractor tread 400/60-15.5
Square bale attachment for loading frame
Square bale attachment RHS frame & tines for cradle
