Manure
Spreaders
Manure
Spreaders
Count on McIntosh for Manure Spreaders that deliver consistent, even spreading and the flexibility to meet your on-farm demands.
Available in 7.5, 10.8, and 13.5 m³ capacities, McIntosh Manure Spreaders are engineered for precision and versatility. Each model is designed to evenly distribute a wide range of materials with consistent results, ensuring efficient use of nutrients and time.
Built tough with 13 mm (24-tonne breaking strain) floor chains, along with McIntosh’s automatic floor chain tensioner, these machines are made to perform under pressure. Our robust back door design features double sealing rubbers. No floor guide holes means no loss of product, especially liquid-based waste, where other machines may leak due to unnecessary openings. Dual vertical augers deliver up to 16 metres of spreading coverage, ensuring a thorough, uniform distribution every time. Strong. Reliable. Proven. Choose McIntosh for a manure spreader that works as hard as you do.
| Model | Overall Length (mm) |
Overall Width (mm) |
Loading Height (mm) |
Capacity Level Load (m³) |
Weight (kg) |
Tyre Size | Floor Chains | Internal Bin | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Length (mm) |
Bottom Width (mm) |
Top Width (mm) |
Height (mm) |
||||||||
| 7.5 | 7300 | 2450 | 2250 | 7.5 | 4160 | 15/70-18 | 2 | 4370 | 1500 | 1900 | 1050 |
| 10.8 | 7500 | 2450 | 2650 | 10.8 | 5580 | 385/65R-22.5 | 4 | 4600 | 1500 | 2000 | 1460 |
| 13.5 | 8700 | 2780 | 2730 | 13.5 | 5985 | 500/60-22.5 | 4 | 5800 | 1500 | 2000 | 1460 |
NB: All weights and measurements are approximate and dependent on pecifications and may change without notice.

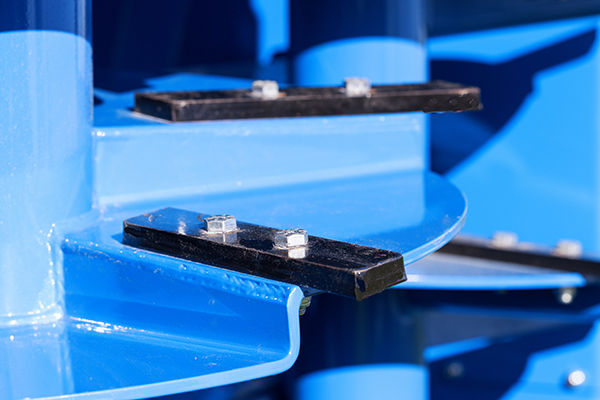

Bolt-on, reversible auger tips

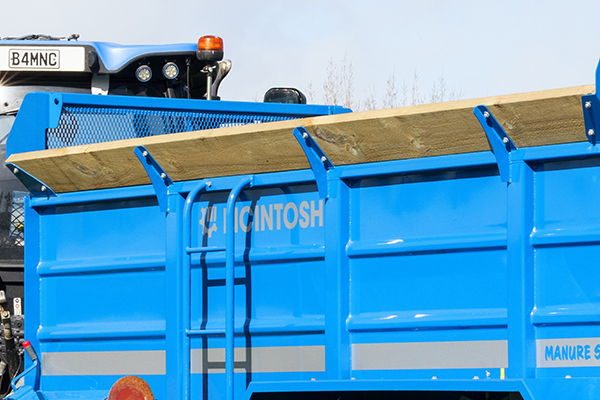

Flared top for easier loading

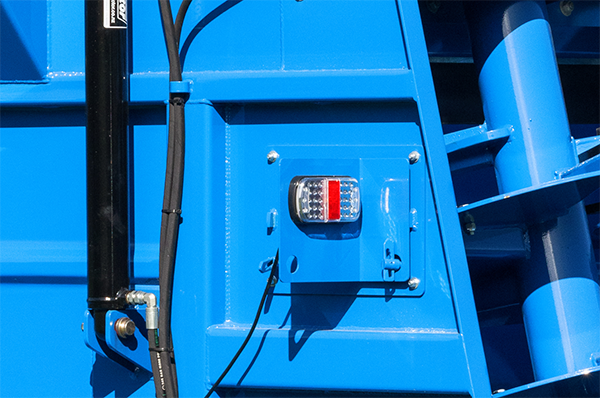

Foldaway lights

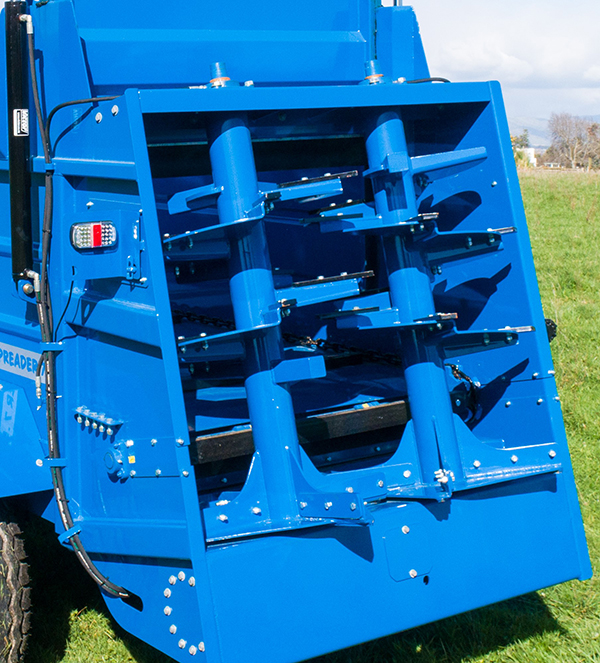

Stepped augers for improved throw

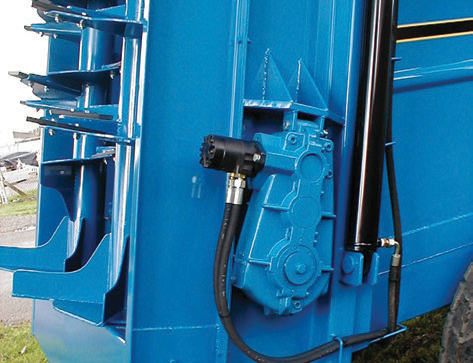

German gearbox for floor shaft drive.

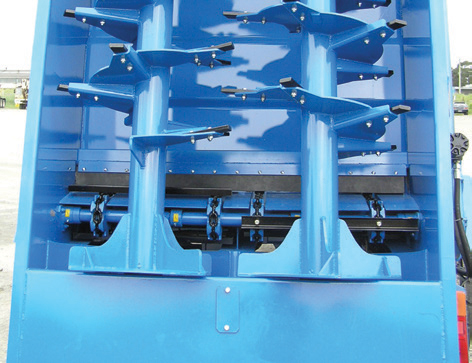

Stepped spine for a better throw.
Up to 16m spread with a very even pattern.
Semi liquid waste can be spread with the longer front and back rubber skirts
Solid waste material.

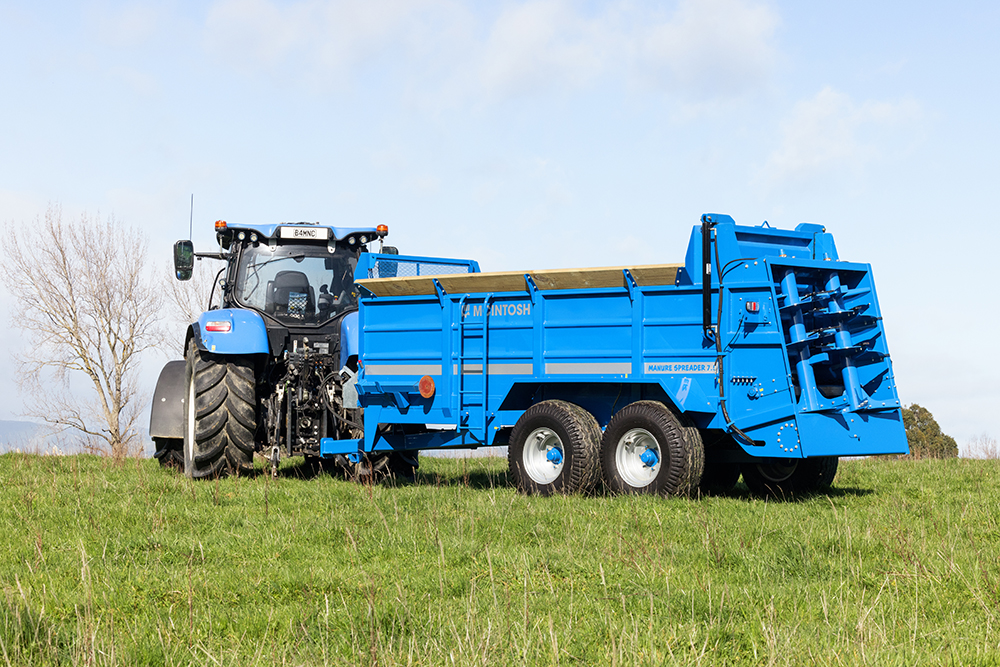

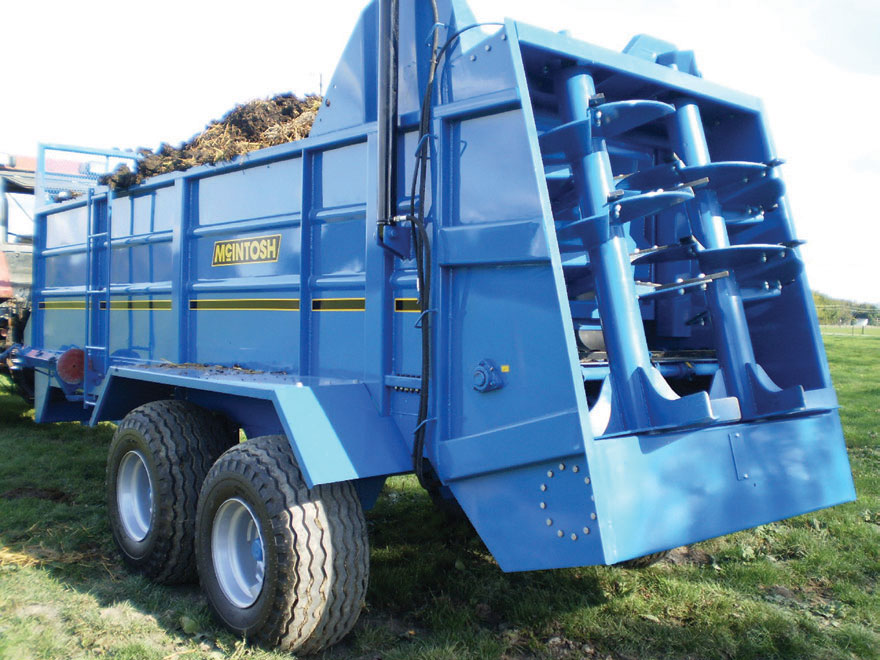

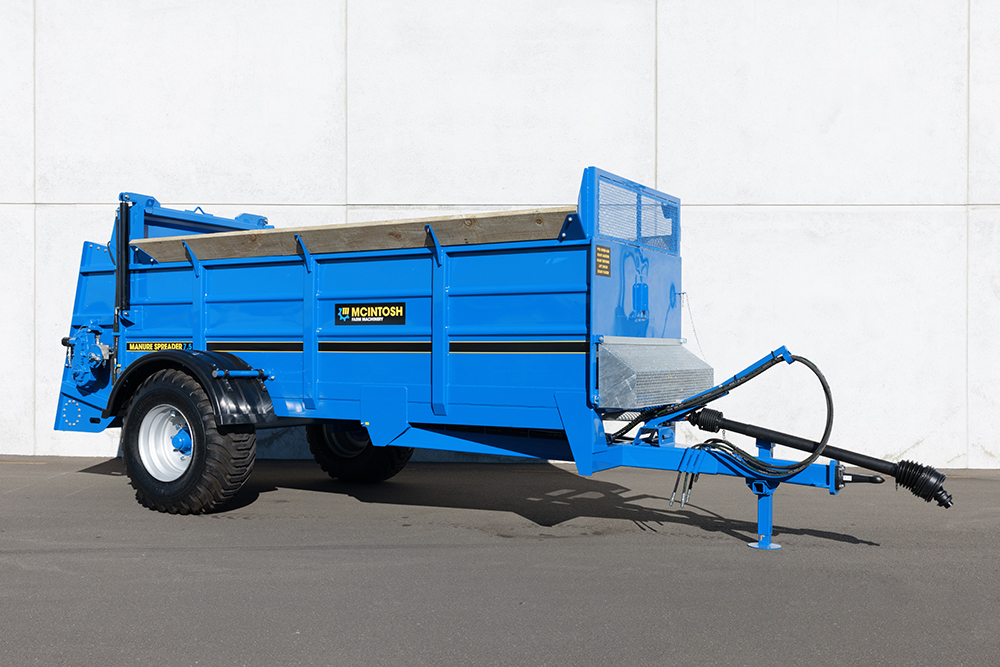

7.5m³ spreader

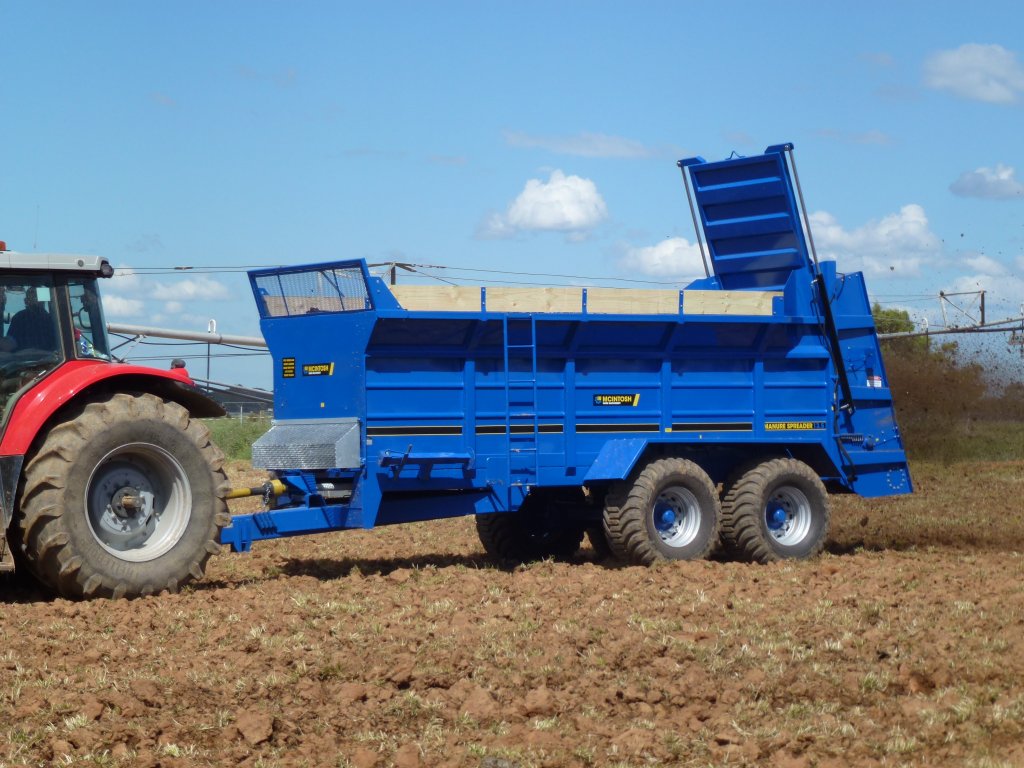

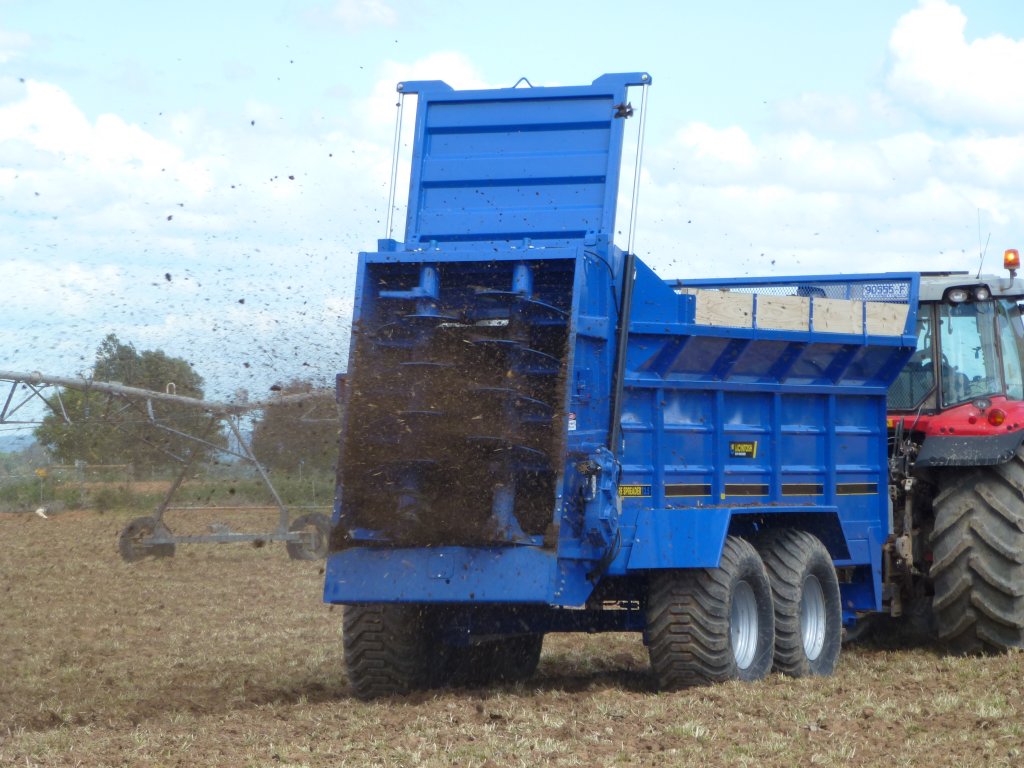

13.5m³ spreader

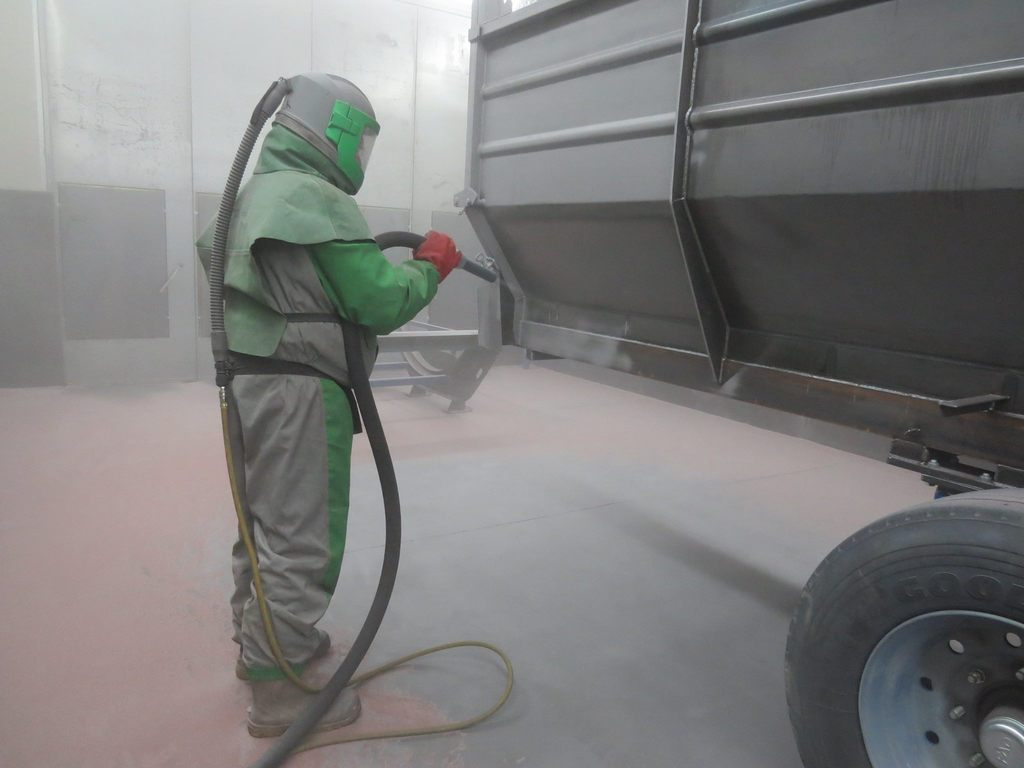

Sand BlastingAll machines are sandblasted and sealed prior to the application of our high quality paint system with a two pack finish to give a durable long life finish.
| 4 x 13mm floor chains 10.8 and 13.5, 2 x 13mm floor chains on the 7.5. | Augers are PTO driven through a drive line with overload and over run protection |
| 2 vertical augers with up to 16m spreading coverage | One-piece heavy duty German gearbox for augers |
| 540 PTO speed spinners run at 350 revs | Electric Floor Speed Control on 10.8 and 13.5 |
| 75 x 40 floor slats | Bolt on reversible auger tips |
| Bisalloy plate for bottom of auger | Stepped augers for a better throw |
| Flared top for easier loading | Wide angle PTO shaft |
| Fully welded floor, no holes for back door guides | Bolt on fixed draw bar with 40mm eye |
| Galvanised mesh floor sprocket guard and screen | Mudguards |
| Hydraulic lifting rear door for waste retainment | German gearbox on floor drive |
| Brakes on front axle 10.8 and 13.5 |

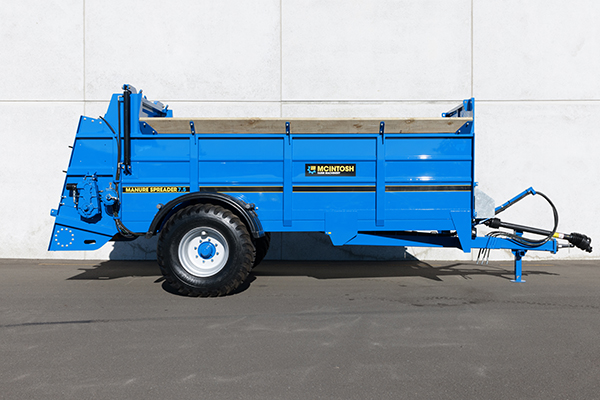

Single Axle (7.5 model)

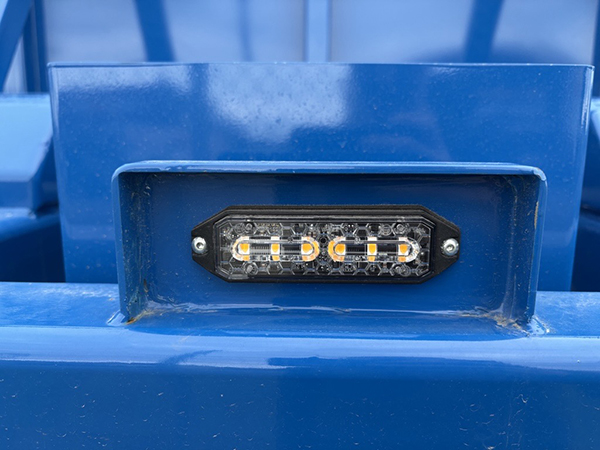

Rear flashing light kit
- Brakes, 4 wheels contractor specification
- Brakes front wheel (7.5 model)
- Brakes, 4 wheels with balancing valve
- Electric floor speed control (7.5 model)
- Tyre size options
- 16 mm floor chains – 32 tonne breaking strain
- Grease hose from walking beam to mudguard
