Engineered for efficiency and built to perform, the award-winning McIntosh Multi Bale Feeder is purpose-built for serious feeding efficiency.
With a rugged 4 or 5 bale capacity and a unique self-loading design, it’s the ideal solution for large-scale operations where performance is non-negotiable. Whether you’re feeding out hay or baleage, round or square bales, the Multi Bale Feeder delivers unmatched strength, reliability, and simplicity. Its low centre of gravity and wide cradle provide superior stability across all terrain, while dual-side feeding and multi-bale handling reduce trips and streamline the feeding process.
Proudly designed and manufactured in New Zealand, the McIntosh Multi Bale Feeder combines our proven durability with smart, farmer-focused innovation, making every feeding job faster, easier, and more efficient.
| Model | Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Cradle (mm) |
Hubs (mm) |
Tyre Size |
|---|---|---|---|---|---|---|---|

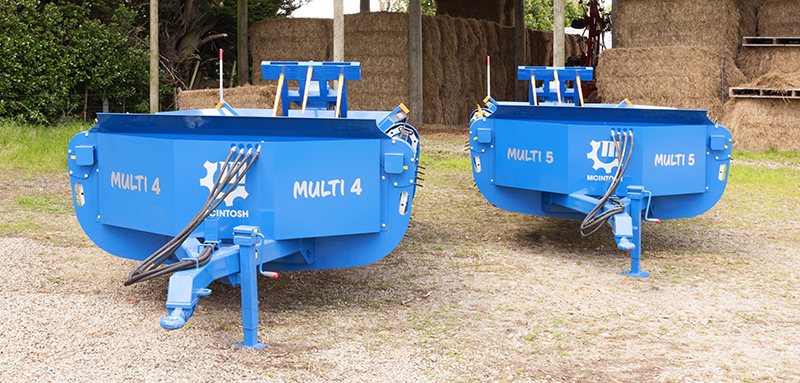

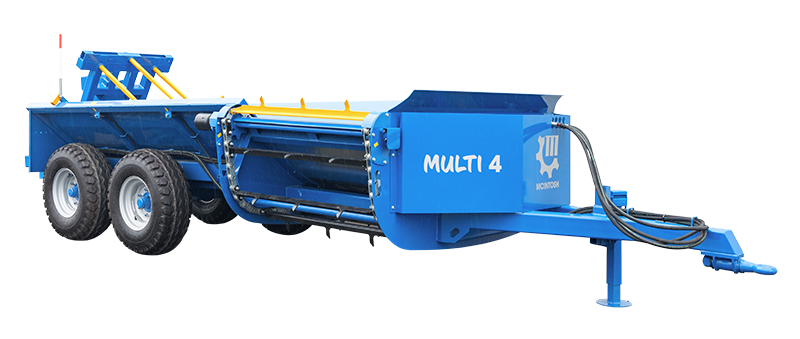

| MULTI 4 | 6940 | 2300 | 1100 | 2380 | 2300 | 60 | 11.5/80–15.3 |

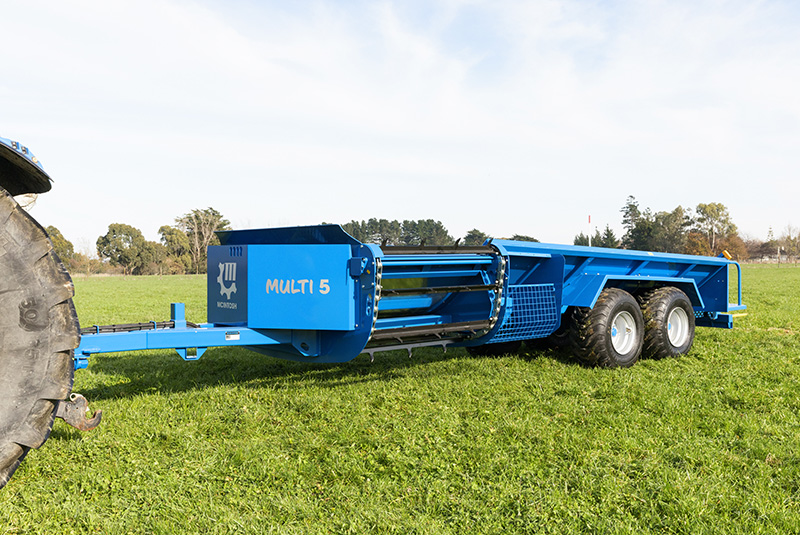

| MULTI 5 | 8140 | 2300 | 1100 | 2660 | 2300 | 60 | 400/60–15.5 |
NB: All weights and measurements are approximate and dependent on specifications and may change without notice.

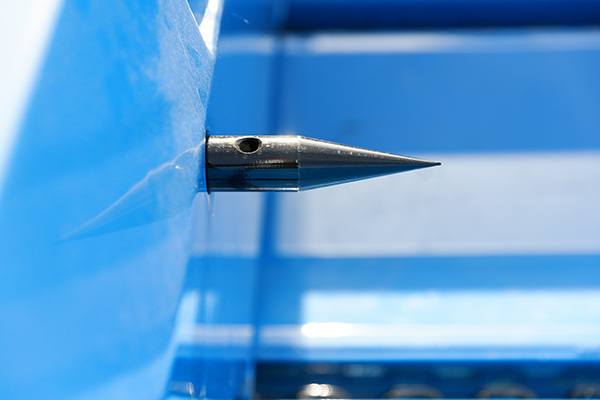

Dual aggression pins

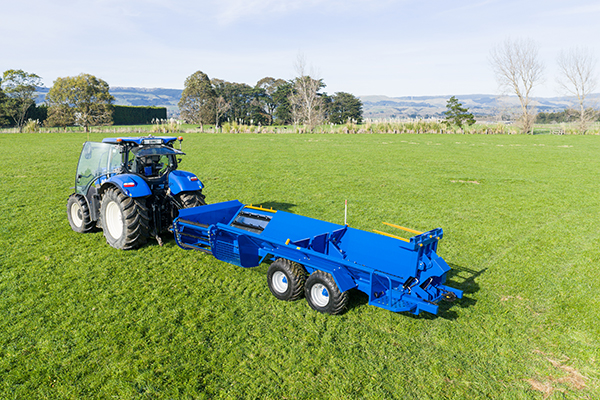

Push bar advances bales for continuous feeds

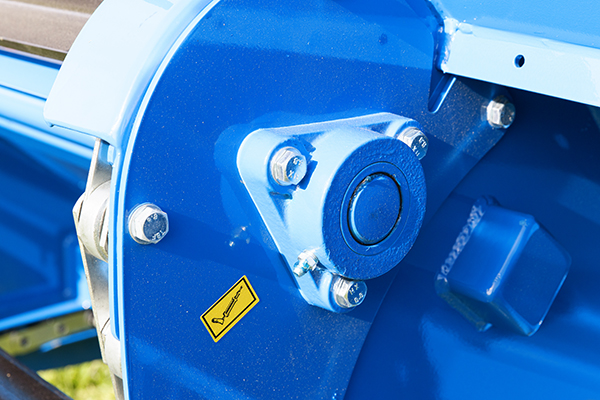

Bronze bushes for low-maintenance, longer life

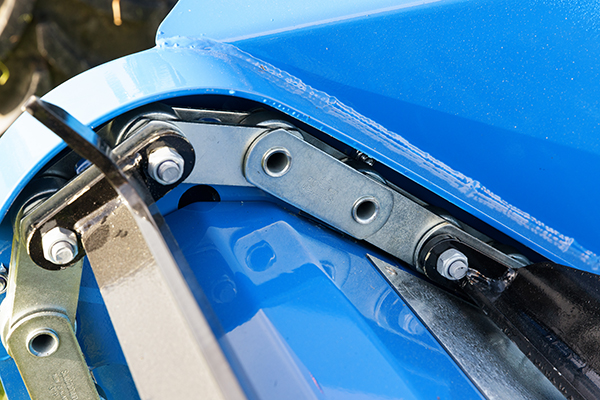

Covered drive shaft prevents wrap and damage

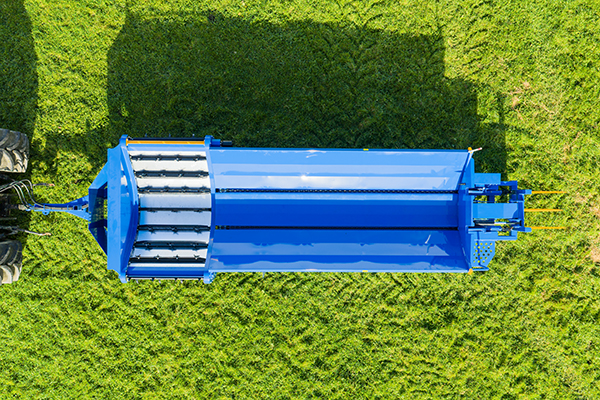

Dual-sided feed-out

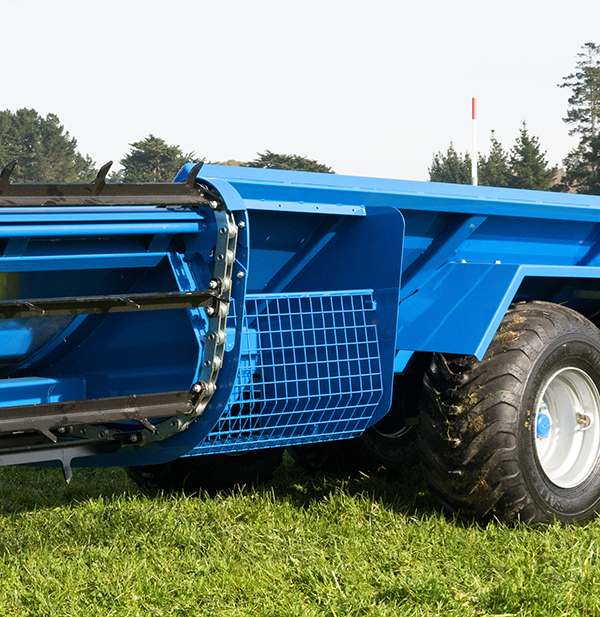

Low centre of gravity for stability on rough ground
Side waste basket

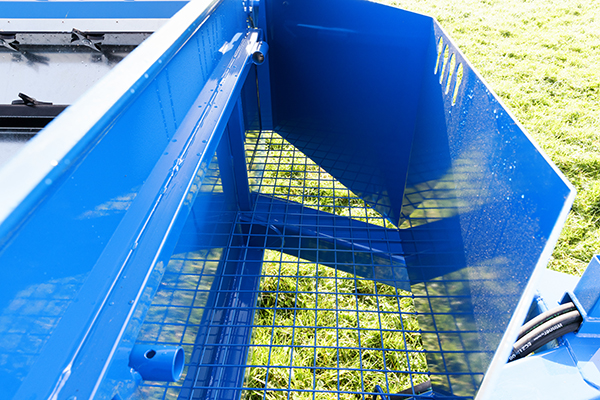

Wrap waste bin
Twin-ram self-loading lifts to 1,200kg

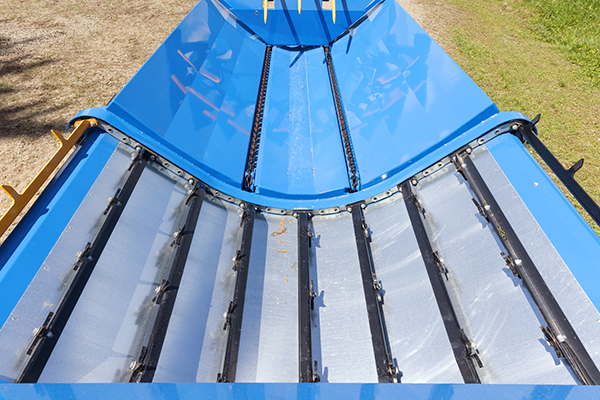

Wide V-shaped cradle reduces loss and centers bales

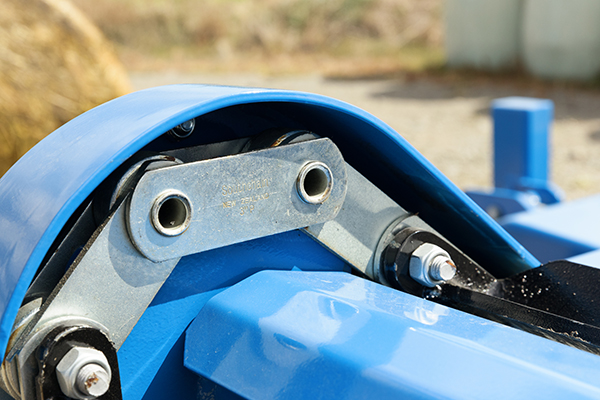

Heavy-duty 3” 12,000lb roller chain

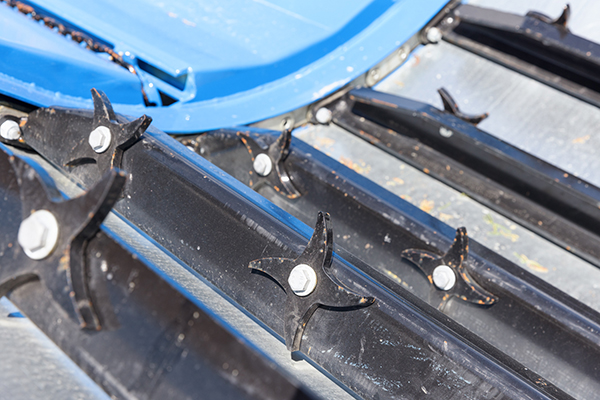

Rolling teeth keep bales moving smoothly

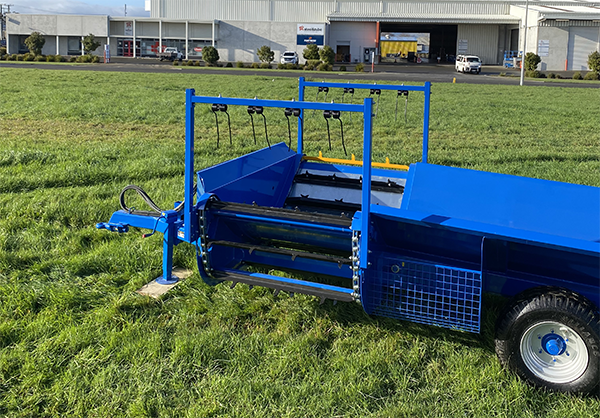

Square bale attachment kit
- Square bale attachment extension arms for loading frame
- Trough extension arm
- Brakes front axle
- Tyres – tractor tread 11.5/80–15.3
- Tyres – tractor tread 400/60–15.5 (multi 4 only)
- LED lights
- Lid on front waste box
