Multicrop Silage Wagons
Multicrop Silage Wagons
McIntosh Multicrop Silage Wagons are built tough for New Zealand’s rugged conditions. With fully welded steel construction and no bolted joints, they offer exceptional strength and long-lasting durability. Proven feed systems ensure consistent delivery, while McIntosh’s renowned build quality guarantees reliable performance year after year.
The Multicrop delivers core McIntosh strength and reliability at a more accessible price, with the same durable build and efficient feed system. The Titan steps it up for tougher conditions, with 13 mm chains, larger sprockets, shafts, and gearboxes for extra strength and power. Both models are built for practical rural performance, without compromise.
| Model | Cubic Capacity (m³) |
Cubic Tonne (m³) |
Overall Width (mm) |
Overall Length (mm) |
Loading Height Bin (mm) |
Track Width (mm) |
Tare Weight (kg) |
Tyre Size | Cross Conveyor Height (mm) |
Floor Chains | Inside Width (mm) |
Inside Length (mm) |
Inside Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 | 9.1 | 6 | 2350 | 6410 | 2240 | 2200 | 3565 | 11.5/80-15.3 | 650 | 2 | 2050 | 4100 | 1130 |
| 700 | 10.1 | 6.75 | 2350 | 7400 | 2240 | 2200 | 3720 | 11.5/80-15.3 | 650 | 2 | 2050 | 4550 | 1130 |
| 800 | 12.4 | 8 | 2350 | 7400 | 2580 | 2240 | 3810 | 12.5/80-15.3 | 750 | 2 | 2050 | 4550 | 1380 |
| 900 | 14.3 | 9 | 2450 | 8150 | 2600 | 2400 | 4230 | 15/70-18 | 730 | 3 | 2050 | 5250 | 1380 |
NB: All weights and measurements are approximate and dependent on specifications and may change without notice.

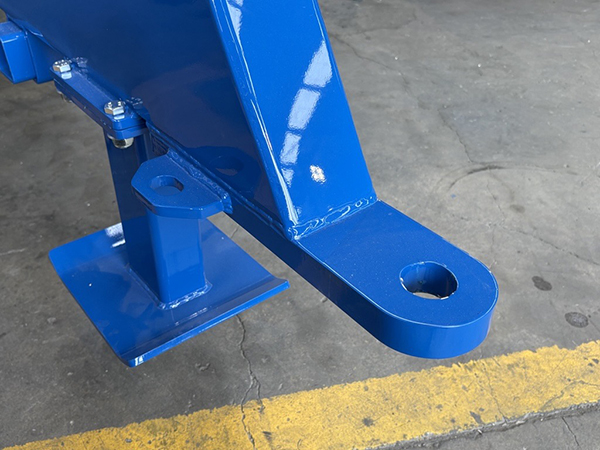

Plate tongue drawbar

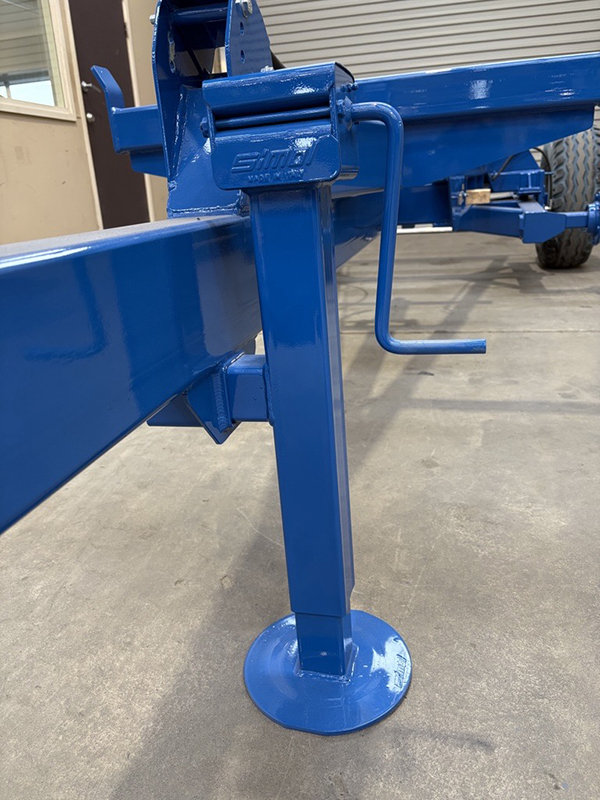

2-Speed jack
Remote axle greasing

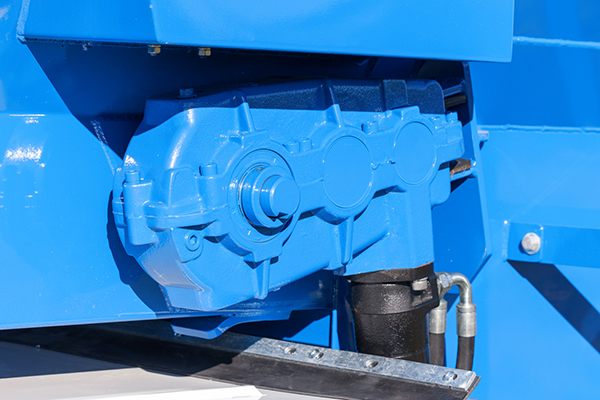

40-1 German reduction gearbox

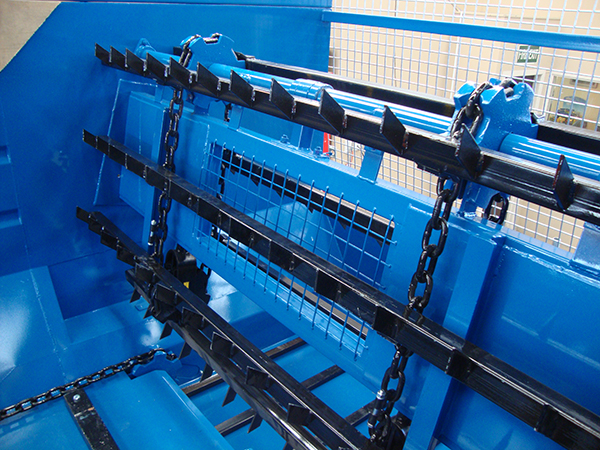

Vertical elevator

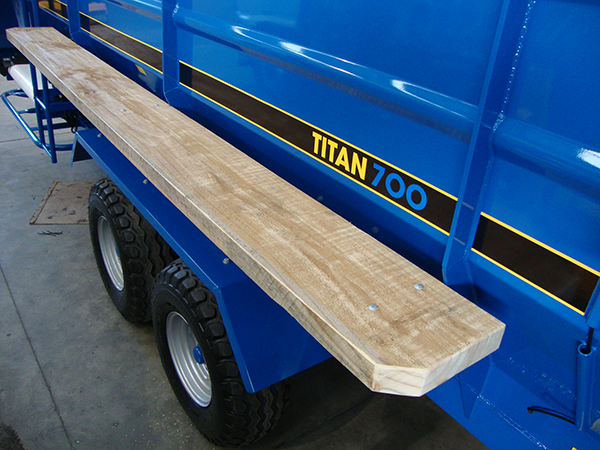

Walkway 250mm wide

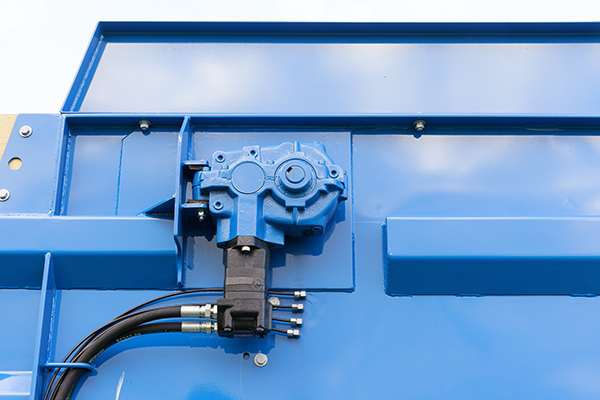

Elevator gearbox
Skid
LED lights

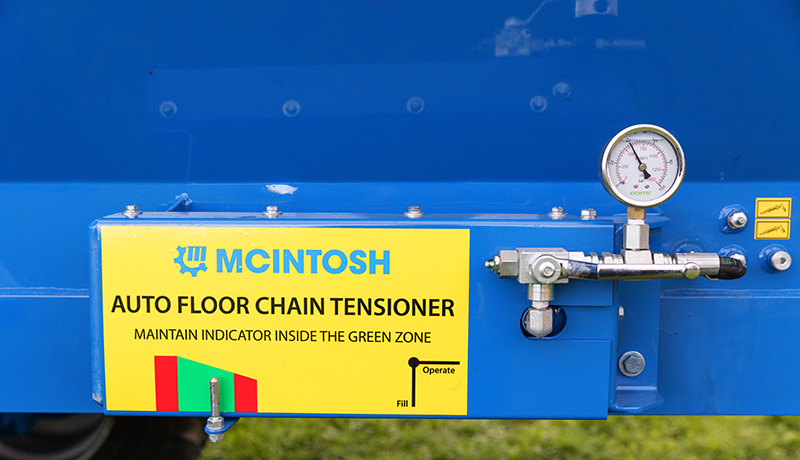

Auto Floor Chain Tensioner
Conveyor belt 1200mm wide
Conveyor roller chain 900mm wide

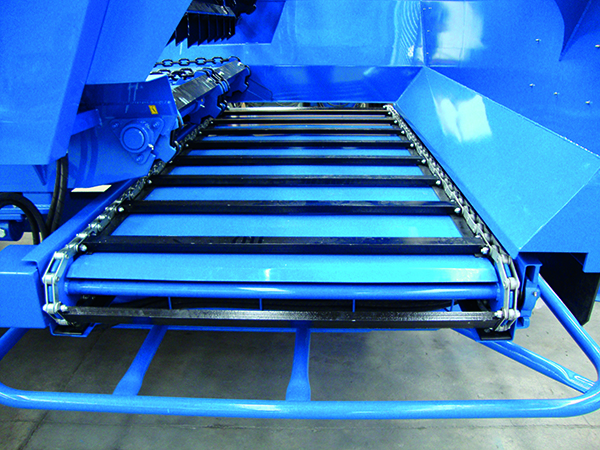

Conveyor roller chain 1200mm wide
Airbags
Hydraulic conveyor extension 200mm wide
Truck Axles
Pivoting cross conveyor
Electric floor speed control
Brakes on 2 or 4 wheels
RHS mudguard protection
Air brakes

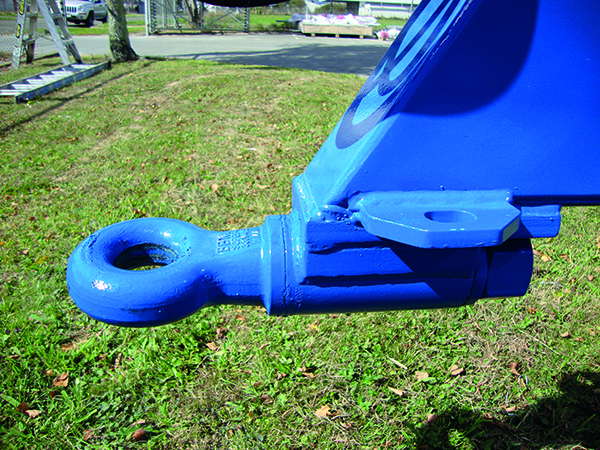

Swivel drawbar tongue
Dummy load cells

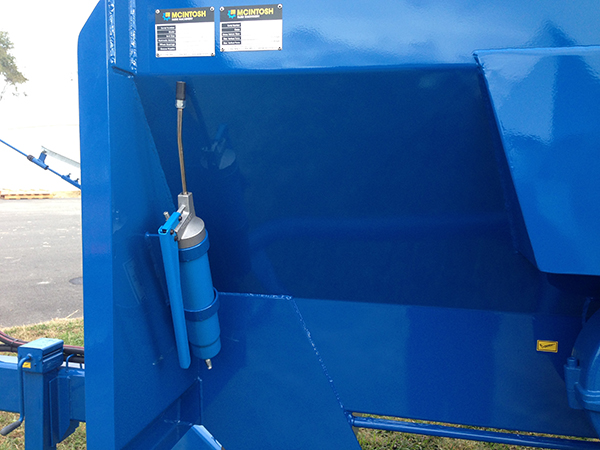

Grease gun holder
Remote display
Bluetooth
