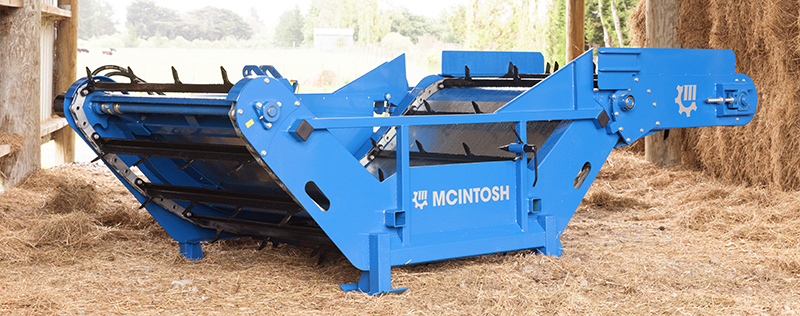

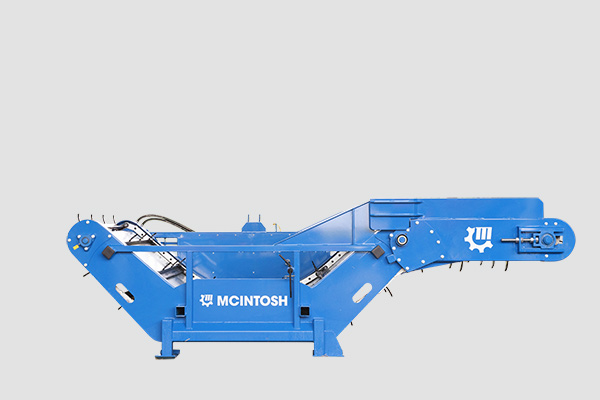

Single Trough Bale Feeders
Single Trough Bale Feeders
You expect strength, quality and performance from your farm machinery, and McIntosh Bale Feeders deliver all three. The McIntosh Bale Feeder is designed to an uncompromising strength standard. It is not designed to be the lightest on the market because with today’s larger bales, faster tractors and less time for maintenance, the need for additional strength has never been more important.
The trough feeder arms extends to 2040mm from the centre of the tractor, with a hydraulic ram to raise the extension to help get through gates. The raised sides on the extension helps reduce the product from falling off the sides.
| Overall Width (mm) | 3300 |
| Overall Length (mm) | 1750 |
| Overall Height (mm) | 940 |
| Width Arm Raised (mm) | 2350 |
| Weight (kg) | 895 |

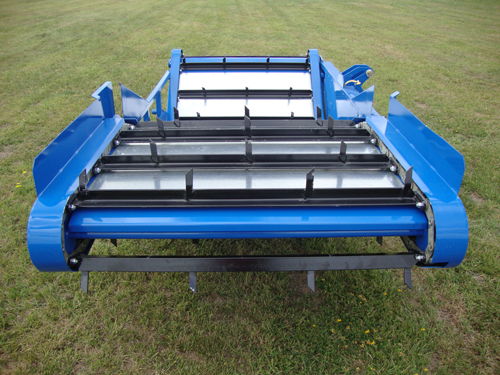

Extended sides on the extension

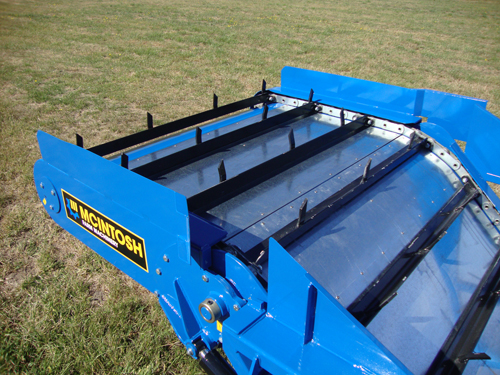

The trough arm extends to 2040mm
Solid lifting frame and pivot

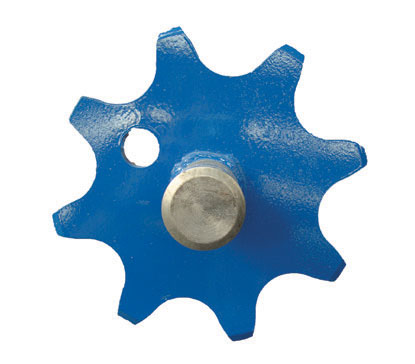

8 Tooth sprocket for extended chain life

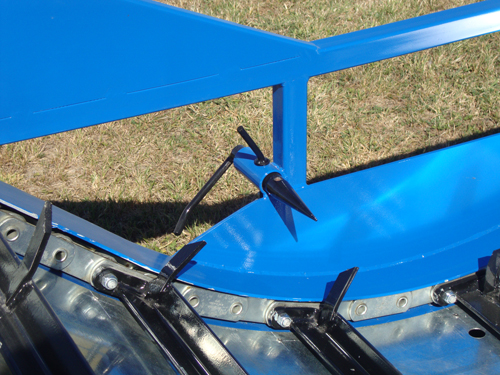

McIntosh Aggression Pin

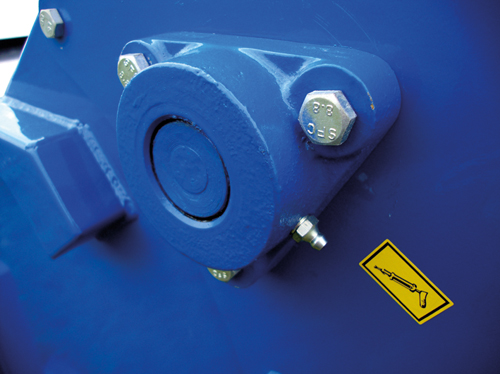

Bronze bushes for low maintenance, longer life

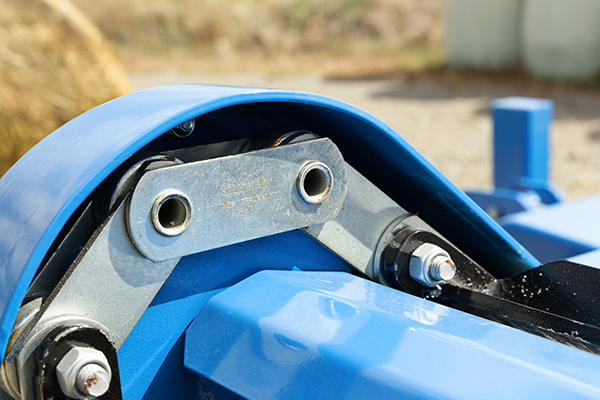

Heavy-duty 3” 12,000lb roller chain

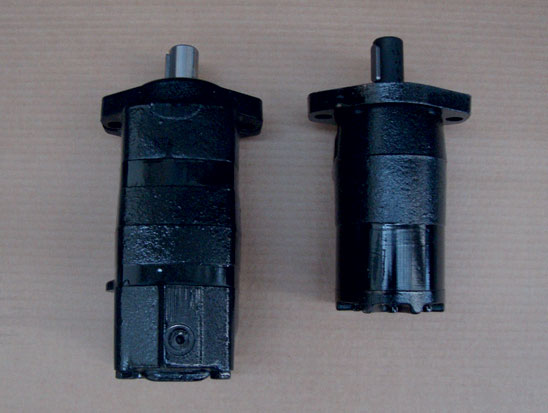

3000 PSI motor with 1¼” shaft and large key

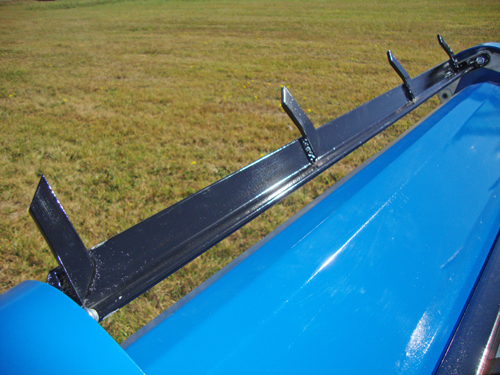

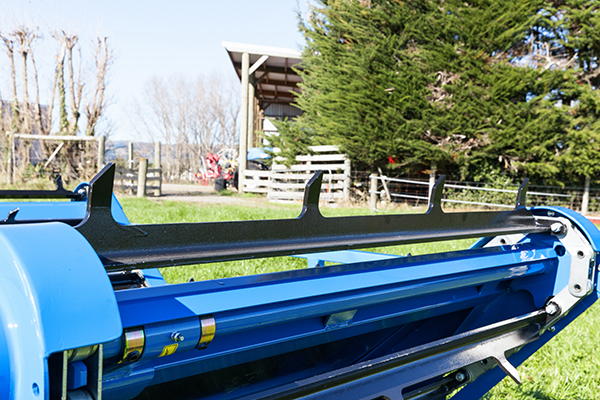

8 mm angled slats for improved bale ripping

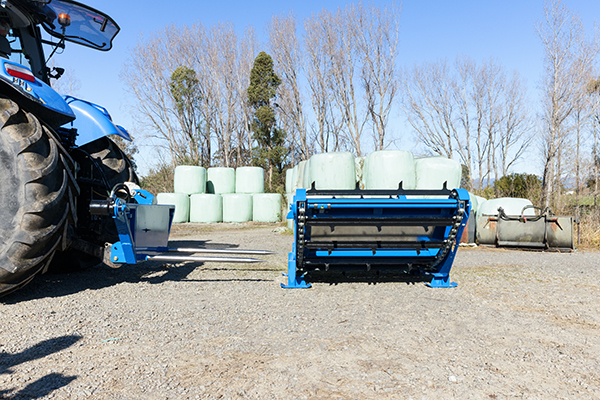

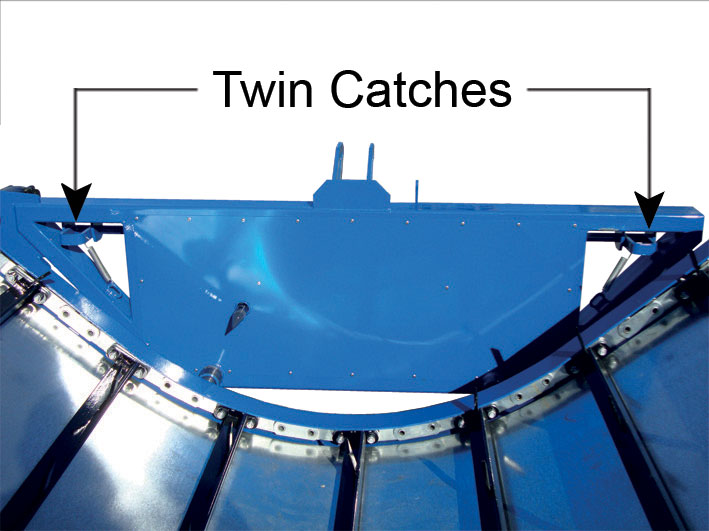

Two headstock catches
1000mm extension arm
Four easy access grease points
1” high-tensile drive dog pins (direct drive)

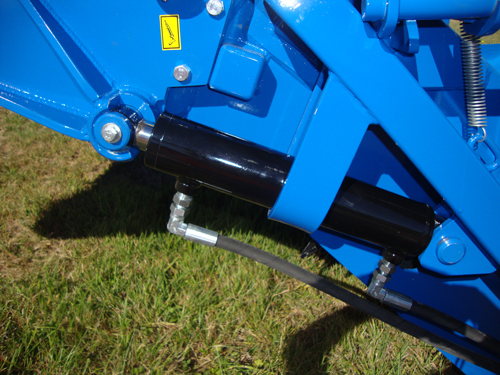

Ram to raise extension
Feeds out either side
Safety latch to ensure forks cannot be removed unless the extension arm is down
Covered drive shaft to stop wrapping of silage

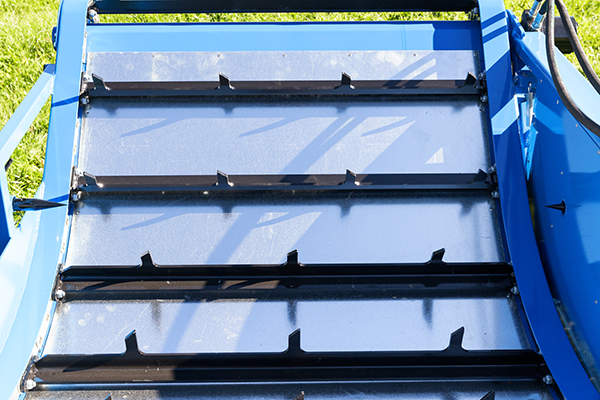

3 and 4 tooth slats grip tough, uneven bales
High tensile bar tynes are bolted to the headstock providing increased strength

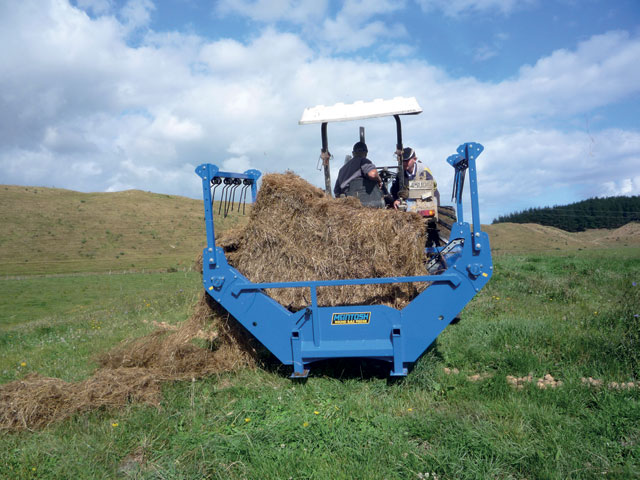

All McIntosh Bale Feeders can be setup to load round or square bales with our square bale feeding option. This allows you to load, carry and feed out large square bales with ease.
Square bales with adjustable side frames and tynes
The trough feed arm extends to 2040mm from the centre of the tractor. A hydraulic ram raises the extension to help get through gates
| Back panel |
| Back panel with waste basket |
| Ram release on headstock |
