Tip Trailers
Tip Trailers

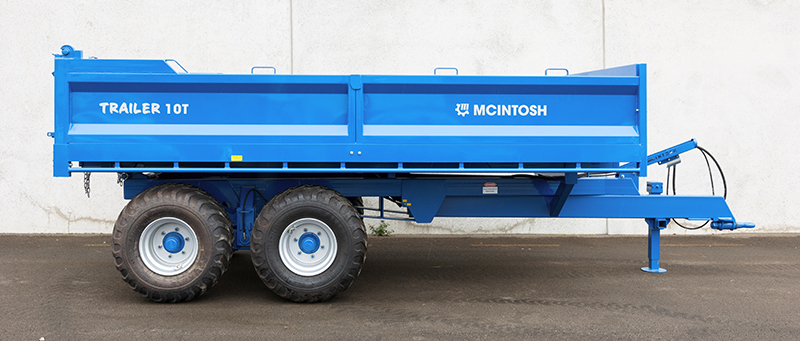

McIntosh Tip Trailers are built tough and stable, handling heavy loads in challenging conditions with ease.
With exceptional tonnage ratings and rugged construction, our tip trailers are built to last. The high tipping angle and versatile configurations make them indispensable for farms and contractors. McIntosh chassis are strong and adaptable, built to handle gravel, dirt, baleage, and other materials. Optional extras allow you to customise each trailer to suit your specific needs.
| Model | Deck Length (mm) | Deck Width (mm) | Deck Height (mm) | Side Height (mm) | Capacity (m³) | Axles | Hydraulic Ram (Stages) | Tyre Size | Tare Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4.5T | 3200 | 2300 | 1080 | 380 | 2.6 | Single | Single | 12.5/80-15.3 | 1370 |
| 6T | 3600 | 2400 | 1110 | 450 | 3.7 | Tandem | Four | 11.5/80-15.3 | 2040 |
| 8T | 3600 | 2400 | 1110 | 450 | 3.7 | Tandem | Four | 400/60-15.5 | 1940 |
| 10T | 4200 | 2400 | 1120 | 500 | 4.8 | Tandem | Four | 400/60-15.5 | 2485 |

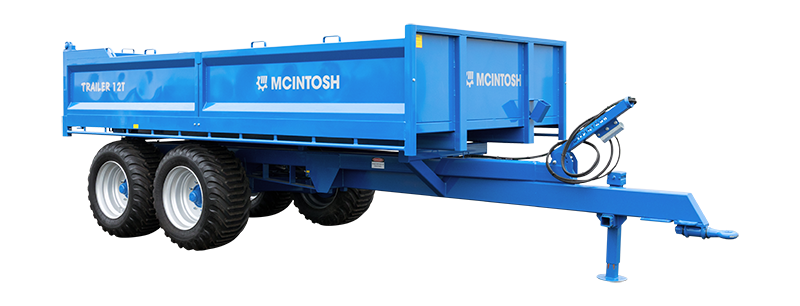

| 12T | 4200 | 2500 | 1220 | 600 | 6.5 | Tandem | Five | 500/45-22.5 | 3050 |
| 12T Wide | 4600 | 2800 | 1220 | 600 | 6.7 | Tandem | Five | 500/45-22.5 | 3510 |
| 14T | 5000 | 2500 | 1320 | 600 | 7.1 | Tandem | Five | 560/45R22.5 | 4390 |
| 14T Bathtub | 4800 | 2440 | 1320 | 800 | 8.9 | Tandem | Five | 560/45R22.5 | 4720 |
| 18T | 5500 | 2500 | 1310 | 800 | 9.2 | Tandem | Six | 560/60-22.5 | 5707 |
| 20T | 5500 | 2800 | 1310 | 800 | 10.3 | Tandem | Six | 560/60-22.5 | 6010 |
NB: All weights and measurements are approximate and dependent on pecifications and may change without notice.

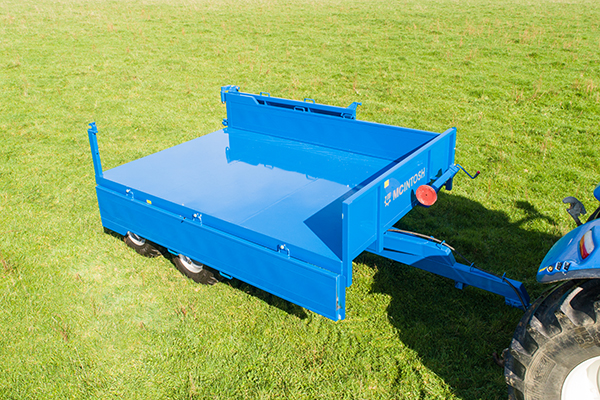

Lift out or drop down side for greater visibility

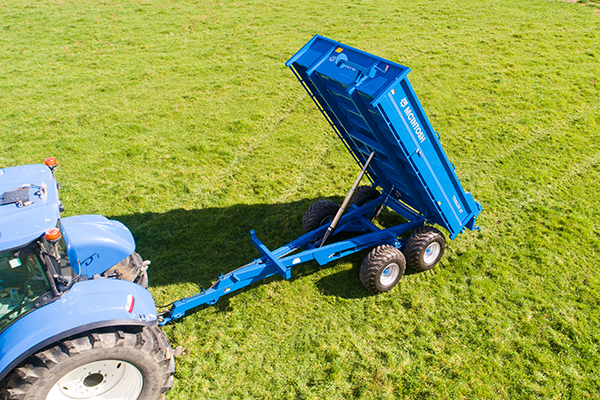

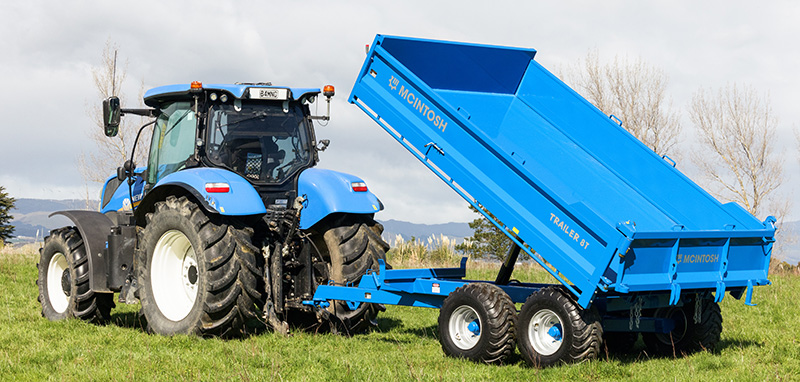

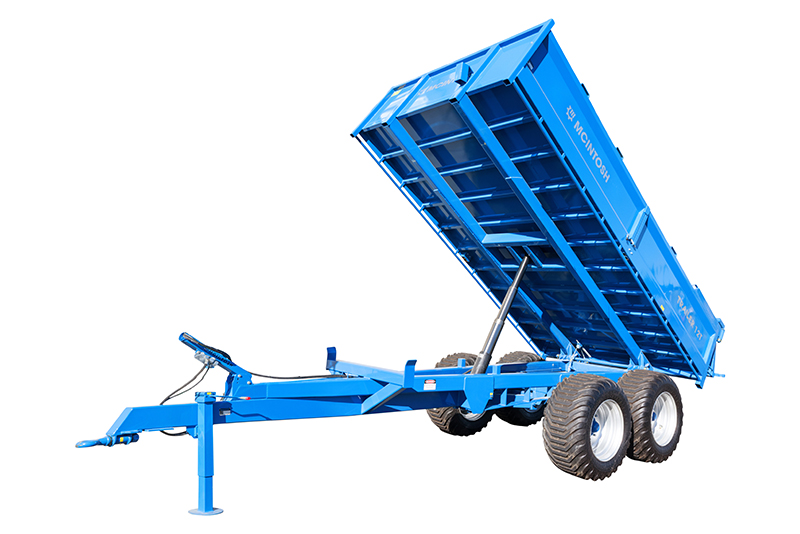

56-58° Tipping Angle
Handles for easy side and tailgate removal

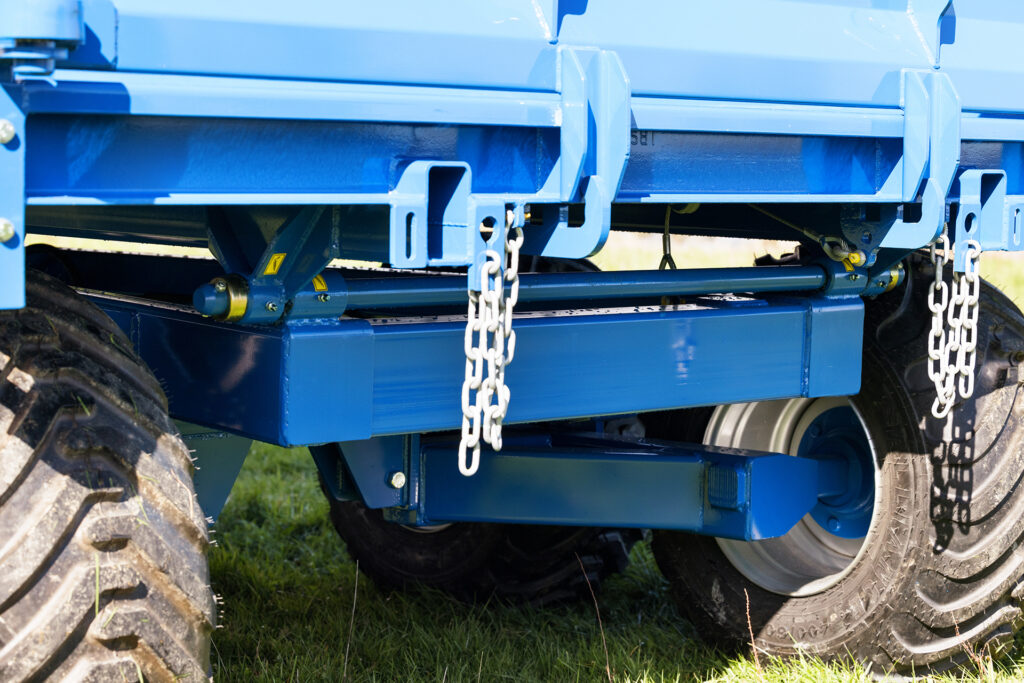

Spreader chains

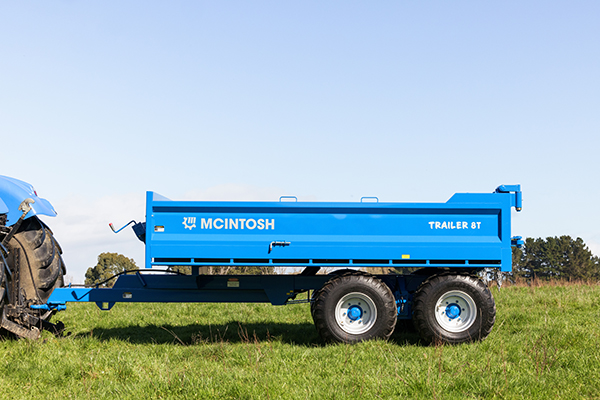

Headboard and tailgate higher than side panels
Safety prop included
Two-speed jack
Ram positioned above chassis base

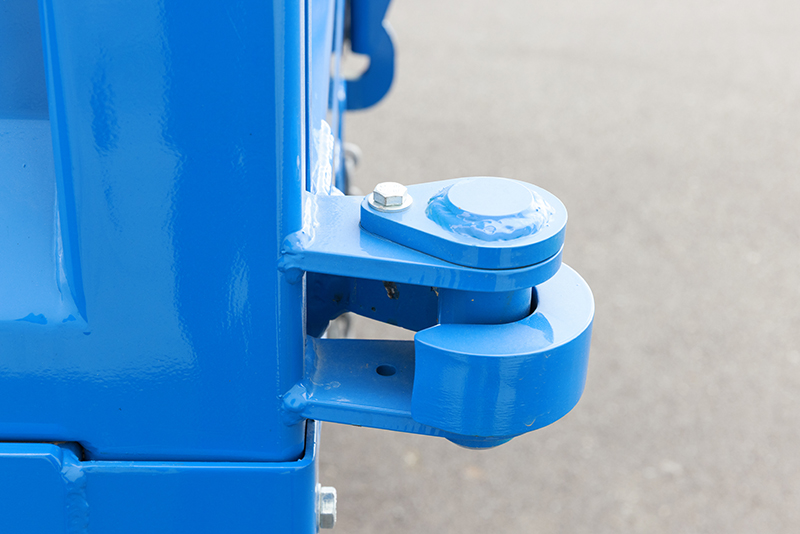

Strong flexible hinge system on fold down sides

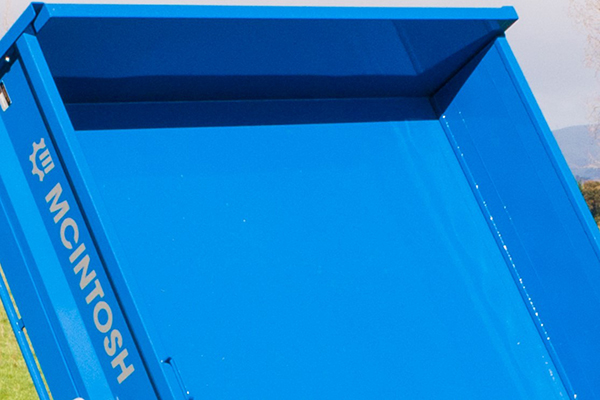

Fully welded sides and floor

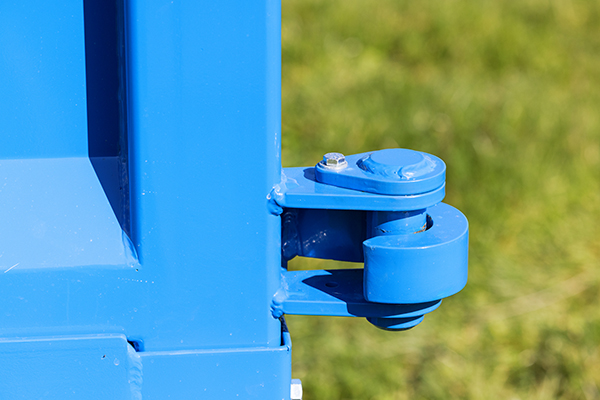

Optional swinging tailgate has an easy forward-facing hook, no pin system

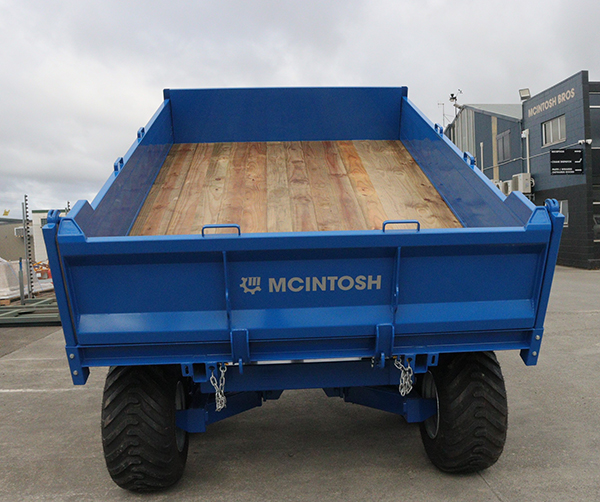

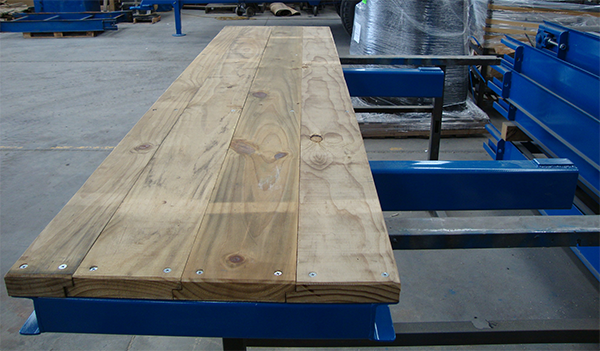

Timber deck

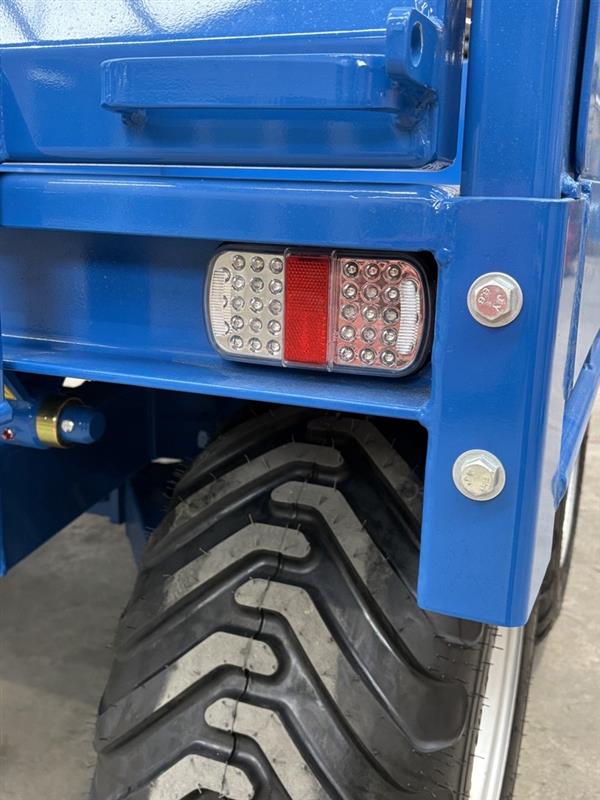

LED lights (6,8,10)
Skid

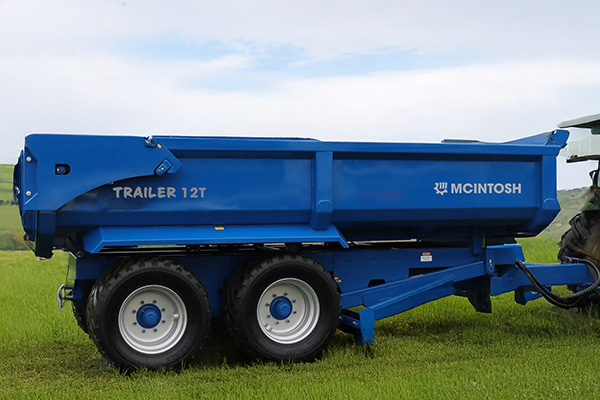

Bathtub deck design

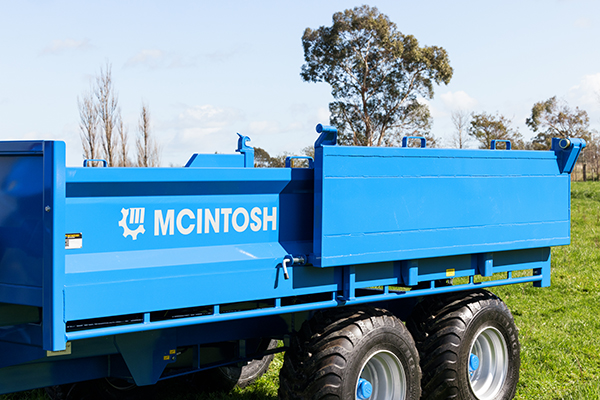

Swinging Tailgate
Hay Extension (900mm or 1200mm)
Hydraulic brakes on 2 or 4 wheels
Air brakes
Remote axle greasing
High lift high clearance tailgate
Hydraulic tailgate release
Hydraulic jack
Sprung drawbar
Tyre size options
Levelling bar
