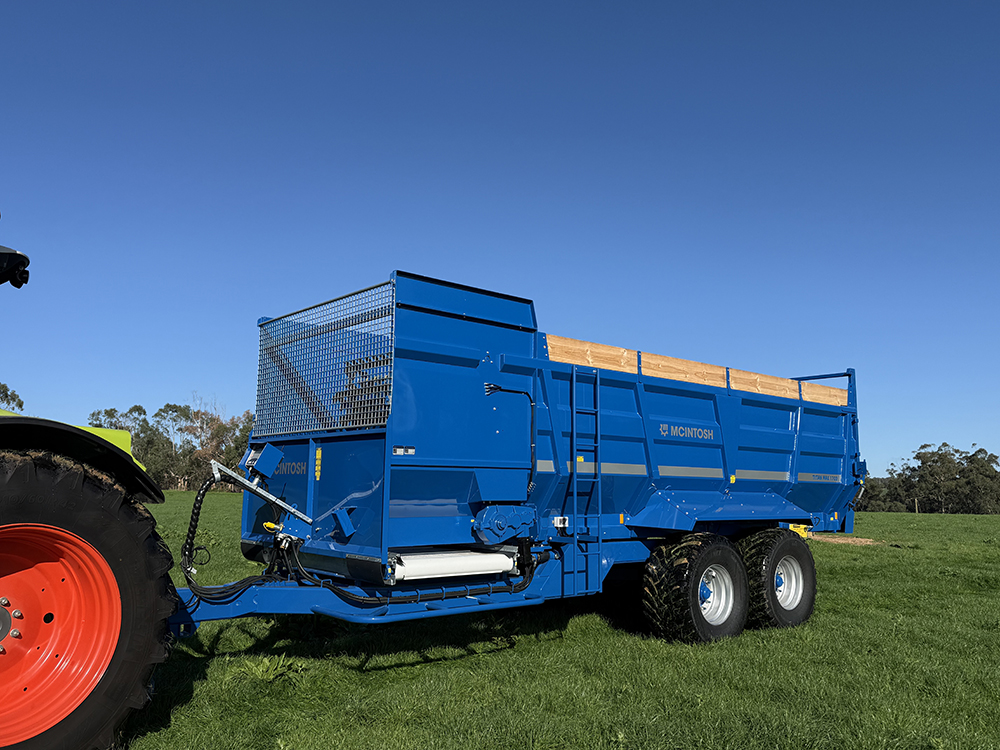

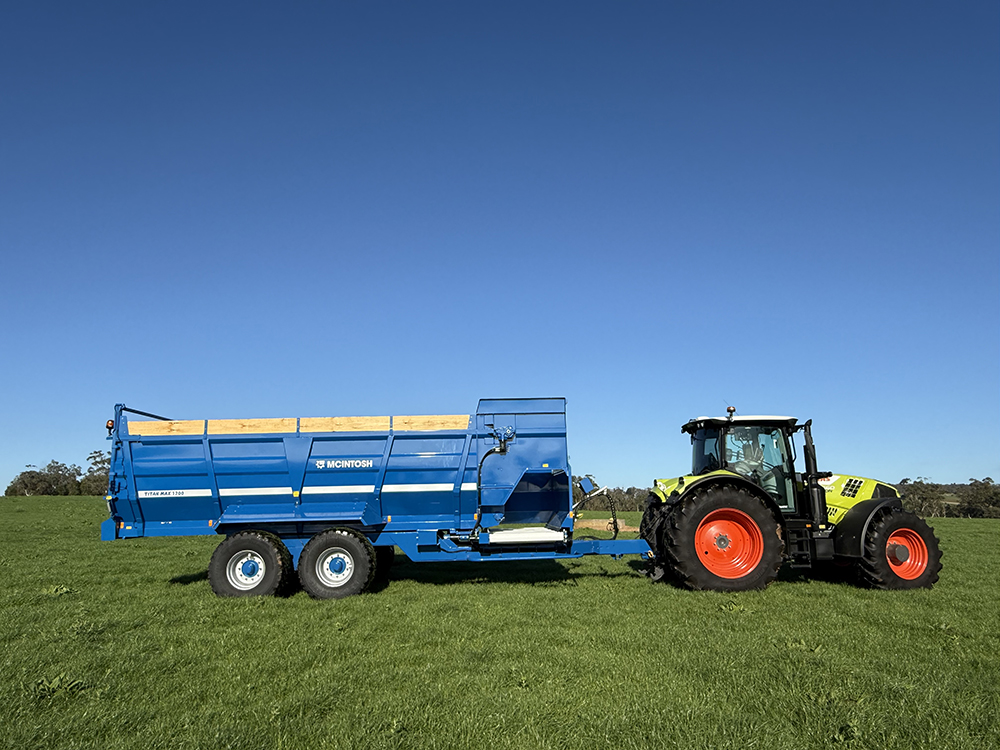

McIntosh Titan Max – The Heavy-Duty Standard for Silage Wagons – The Titan Max is built for farmers who demand maximum strength, reliability, and efficiency from their gear. Designed to handle multiple heavy loads day after day, it’s one of the strongest wagons available in New Zealand made to perform in the toughest conditions without compromise.
With 16mm floor and elevator chains (32-tonne breaking strain), a 5mm corten steel floor, and heavy-duty side construction, the Titan Max delivers unmatched durability. Smart design features like the greasepressurised rear chain adjusting system and remote greasing points make daily operation safer and easier—keeping you out from under the machine and out on the job.
Whether you’re running large herds or working as a contractor, the Titan Max helps you do more with less downtime.
| Model | Cubic Capacity (m³) |
Cubic Tonne (m³) |
Width (mm) |
Length (mm) |
Loading Height of Bin (mm) |
Track Width (mm) |
Tare Weight (kg) |
Tyre Size | Cross Conveyor Height (mm) |
Floor Chains | Elevator Chains |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1400 | 20.2 | 13.6 | 2750 | 9600 | 2600 | 2700 | 5905 | 385/65R22.5 | 730 | 3 | 2 |
| 1500 | 21.5 | 14.6 | 2450 | 9600 | 2900 | 2400 | 6085 | 385/65R22.5 | 740 | 3 | 2 |
| 1700 | 24.8 | 17.5 | 2940 | 9600 | 2950 | 2940 | 6615 | 500/60-22.5 | 740 | 4 | 4 |
| 1900 | 27.2 | 19 | 2940 | 10250 | 2960 | 2940 | 6985 | 550/60-22.5 | 740 | 4 | 4 |
NB: All weights and measurements are approximate and dependent on specifications and may change without notice.

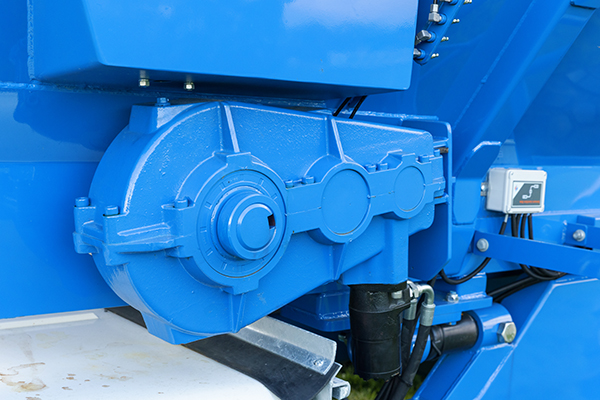

Elevator gearbox
16mm Floor and Elevator Chains

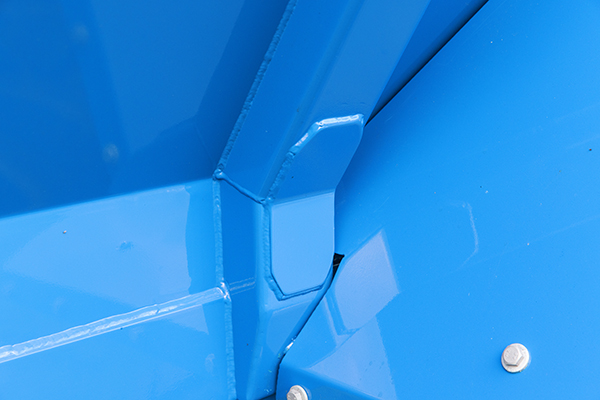

Extra side wall wear plates 5mm Corten steel

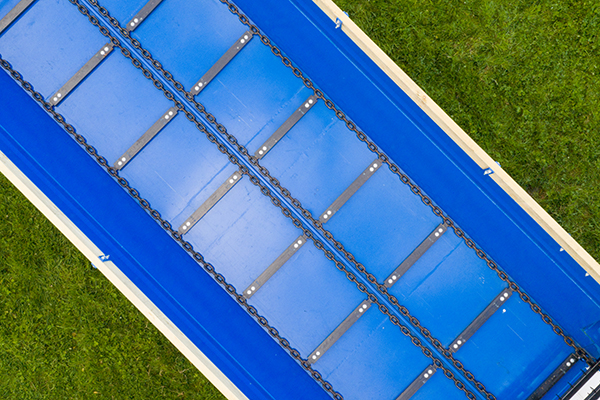

5mm Corten steel Floor

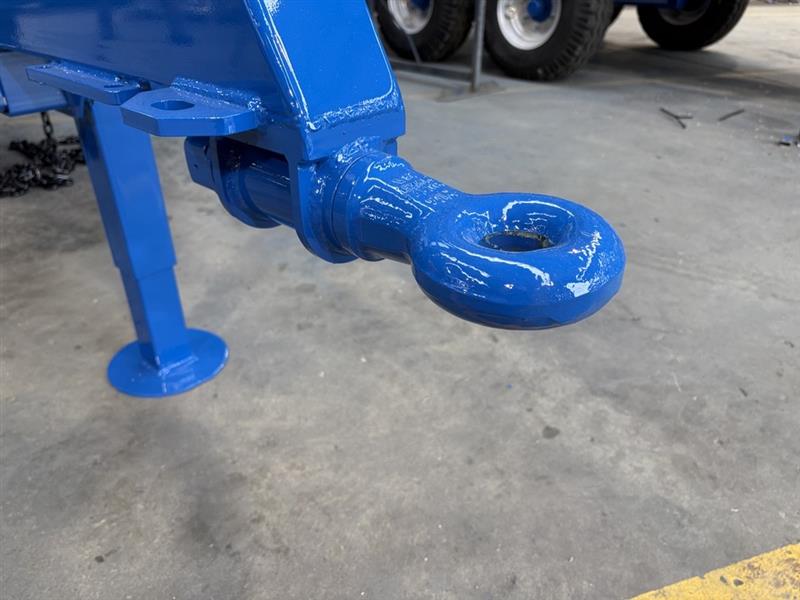

Swivel drawbar tongue
Electric floor speed control
Grease gun and holder

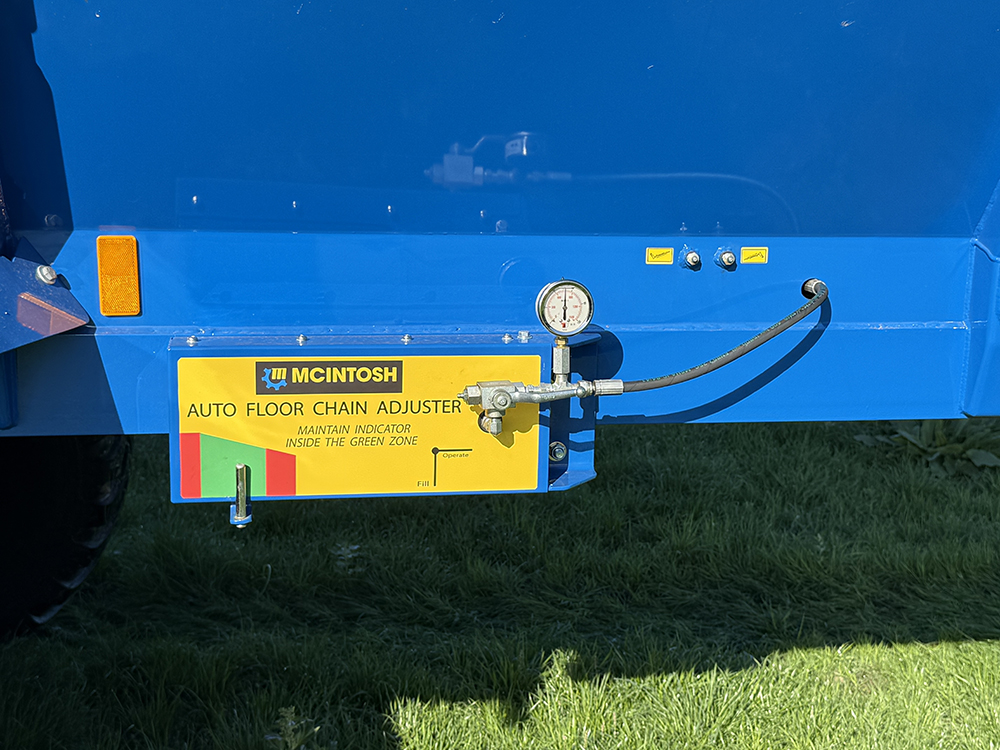

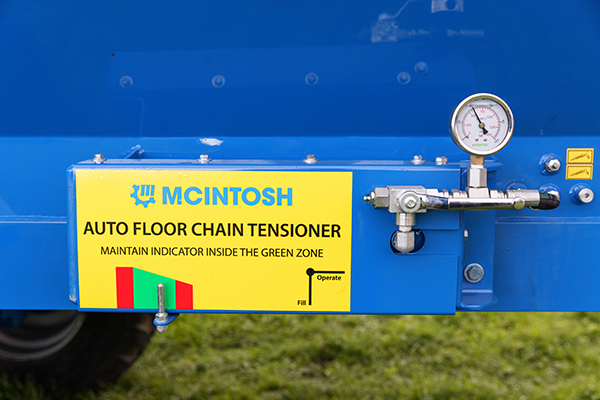

Auto floor chain tensioner

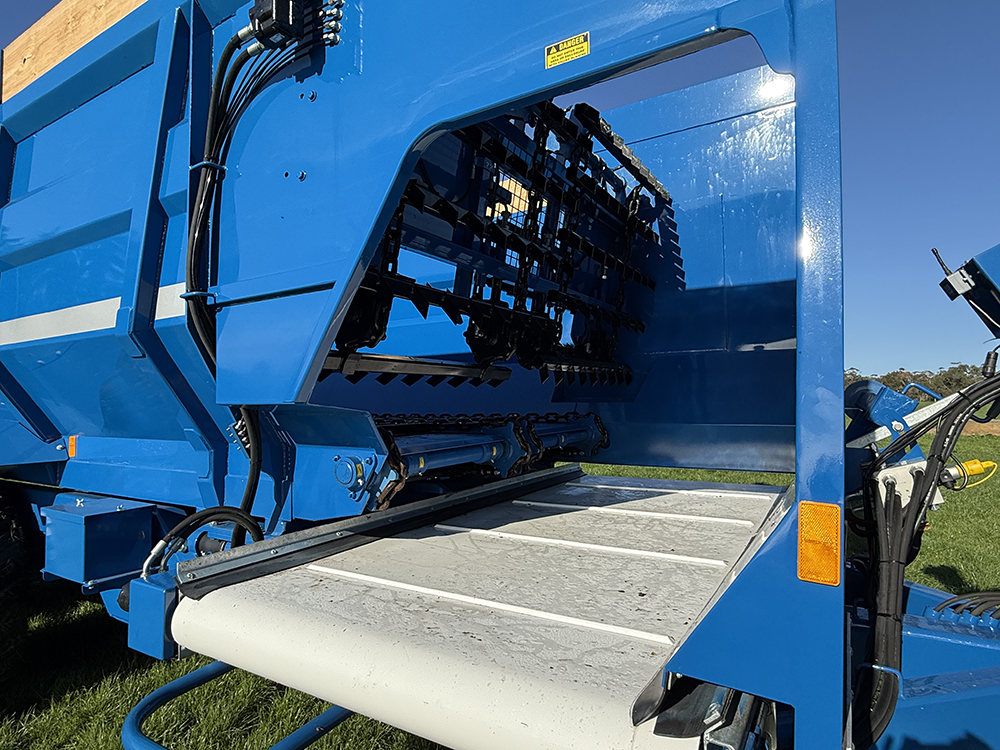

Vertical elevator
LED lights
40-1 German reduction gearbox
- 4 floor/elevator chains option for 1400 and 1500
- Heavy-duty axle with 80mm pins
- Load cells (standard, remote screen, or Bluetooth ready)
- Roller chain cross conveyor
- Wheel Brakes
- Tyre Options
- Electric floor control
- Skid
- Orange beacon
- Extra internal wear plates

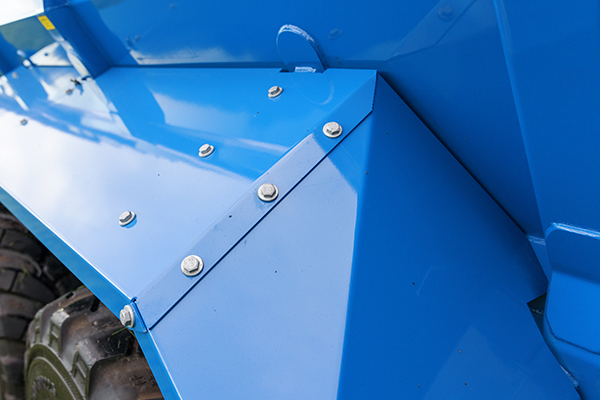

- Corten steel tappered pockets
